Delete Cell Data Action: deleteCellData

The deleteCellData action is used to delete the data from a specific cell in a CSV file, identified by its row number and column number. The updated file, with the specified cell cleared, is saved at the provided output path.

Note: Ensure that the file being used is not open during the execution of the Case to avoid errors or conflicts.

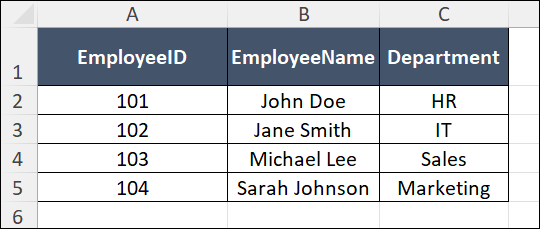

Example: Suppose you have a CSV file named EmployeeRecords.csv, located at C:\Data, with the following data:

You want to delete the data in the Department column for the second row (row index 1, column index 2) and save the updated file as UpdatedEmployeeRecords.csv.

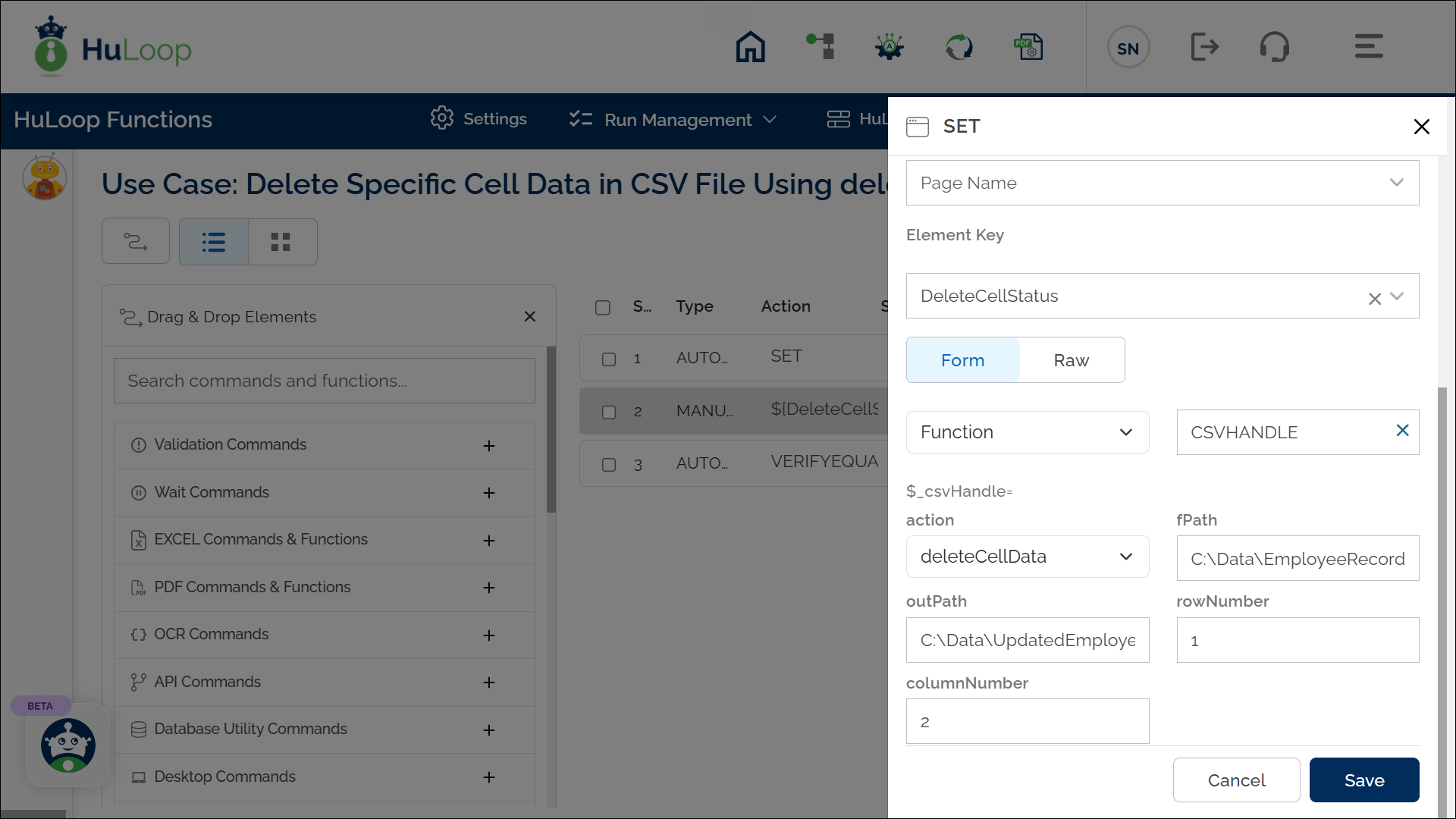

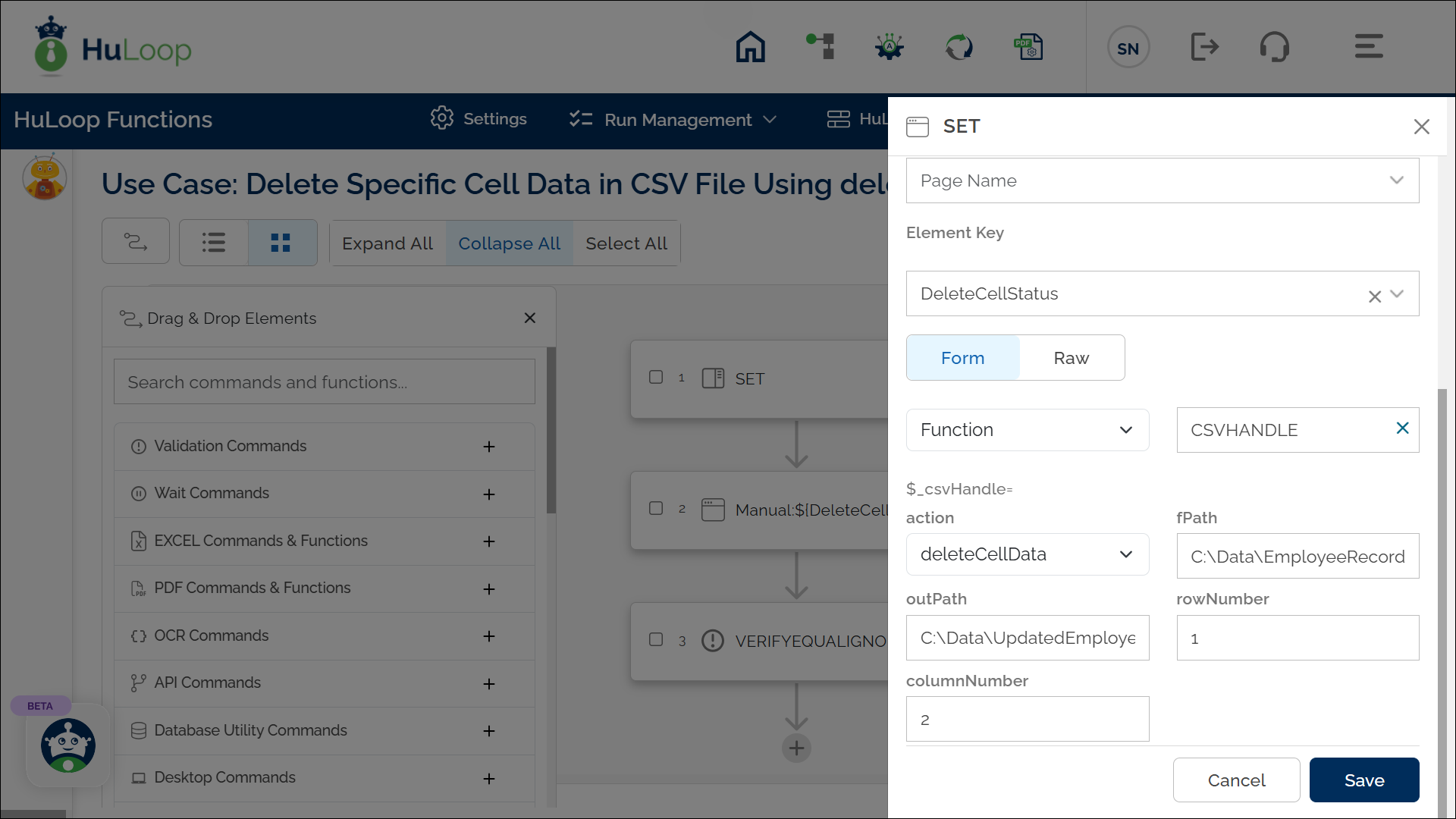

Steps to Configure:

1. Select Set a Variable Value from the Action dropdown.
2. Enter a variable name in the Element Key field (e.g., DeleteCellStatus). This variable will store the result of the operation (true if successful, false if not).
3. Click on Form, select Functions, and choose CSVHANDLE.
4. In the Action field, select deleteCellData and provide the following parameters:
   • FPath: Specify the path to the source CSV file (e.g., C:\Data\EmployeeRecords.csv).
   • OutPath: Specify the path to save the updated file (e.g., C:\Data\UpdatedEmployeeRecords.csv).
   • rowNumber: Enter the row index of the cell to delete (e.g., 1 for the second row).
   • ColumnNumber: Enter the column index of the cell to delete (e.g., 2 for the Department column).
5. Click Save.

Outcome on Execution:

• The specified cell (e.g., row 1, column 2: IT) is cleared in the CSV file.
• The updated file is saved at the location specified in the OutPath parameter (e.g., C:\Data\UpdatedEmployeeRecords.csv).
• If the operation is successful, the variable (e.g., DeleteCellStatus) stores true. If the operation fails (e.g., invalid file path, row number, or column number), the variable stores false.
• This variable can be referenced in subsequent steps using the syntax ${DeleteCellStatus}.
