Validate CSV File Function: csvvalidate

The Validate CSV File function is used to compare the data in a source CSV file against a validation file. The discrepancies, if any, are recorded in a destination file. This function helps identify mismatches or inconsistencies between two CSV files, ensuring data accuracy in automation workflows.

Example: Suppose you have a source CSV file, EmployeeRecords.csv, and a validation file, ValidationData.csv, located at C:\Data. You want to compare these files and save any discrepancies in a new file named ValidationErrors.csv.

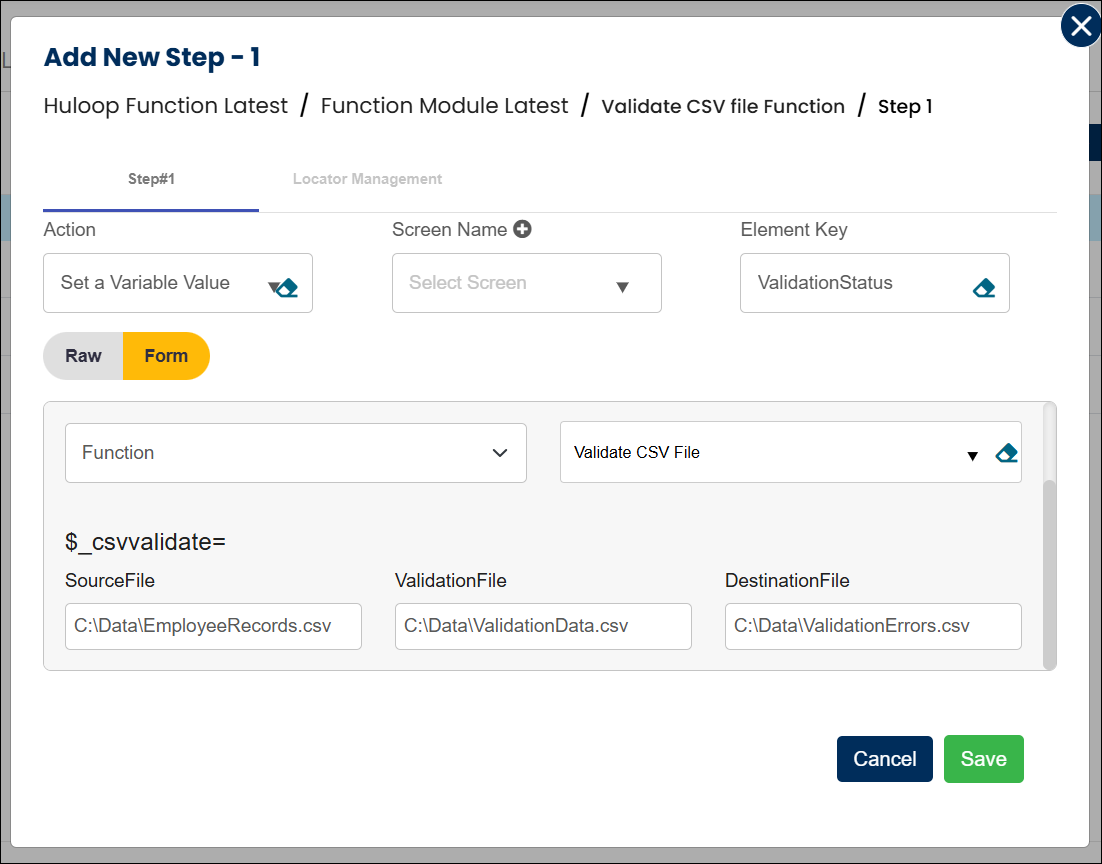

Steps to Configure:

  1. Select Set a Variable Value from the Action dropdown.
  2. Enter a variable name in the Element Key field (e.g., ValidationStatus). This variable will store the result of the operation (true/false).
  3. Click on Form, select Functions, and choose Validate CSV File.
  4. Provide the following parameters:
    • sourceFile: Specify the path to the source CSV file (e.g., C:\Data\EmployeeRecords.csv).
    • ValidationFile: Specify the path to the validation file (e.g., C:\Data\ValidationData.csv).
    • DestinationFile: Specify the path where discrepancies will be saved (e.g., C:\Data\ValidationErrors.csv).
  5. Click Save.

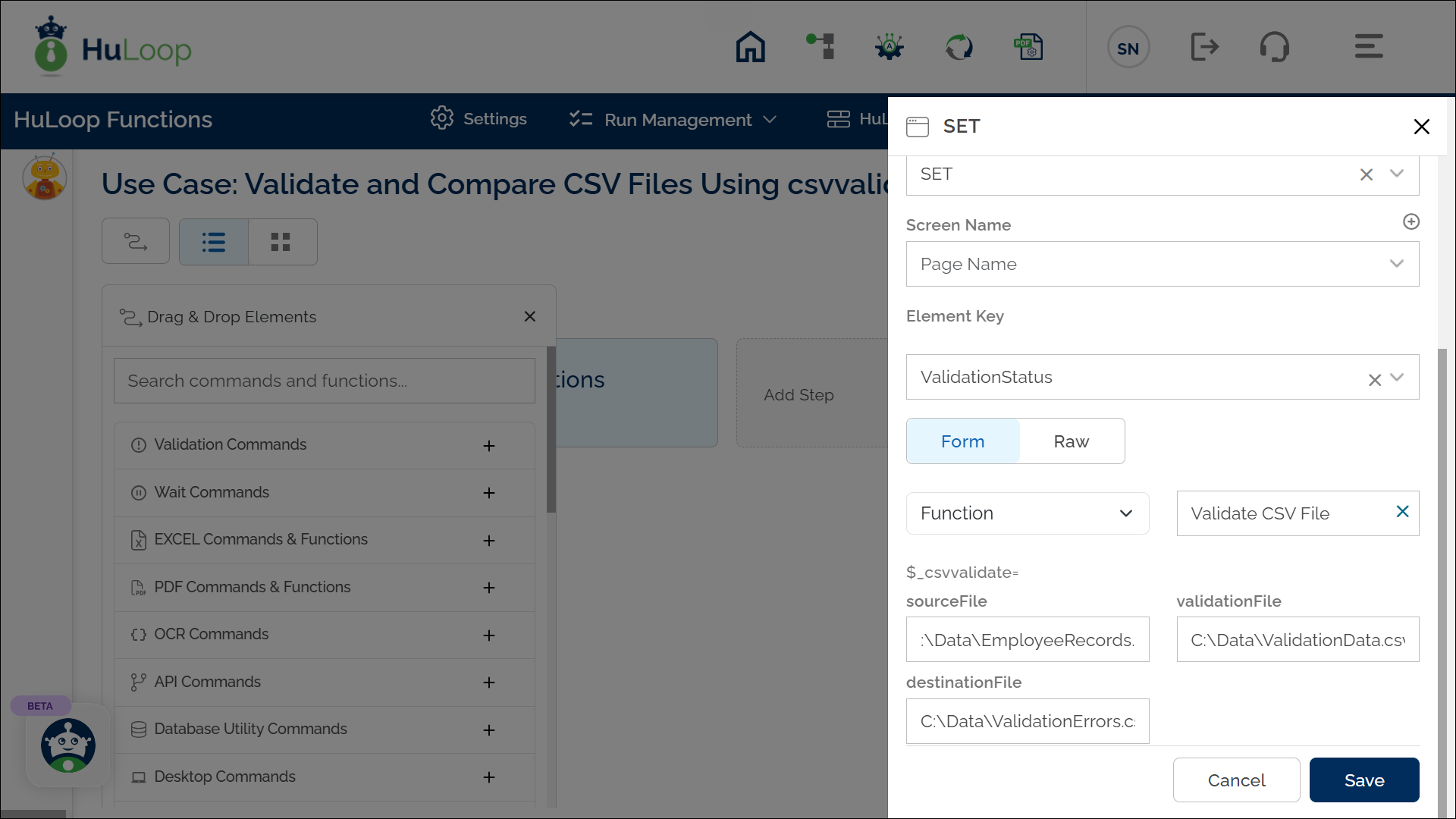

Tabular View

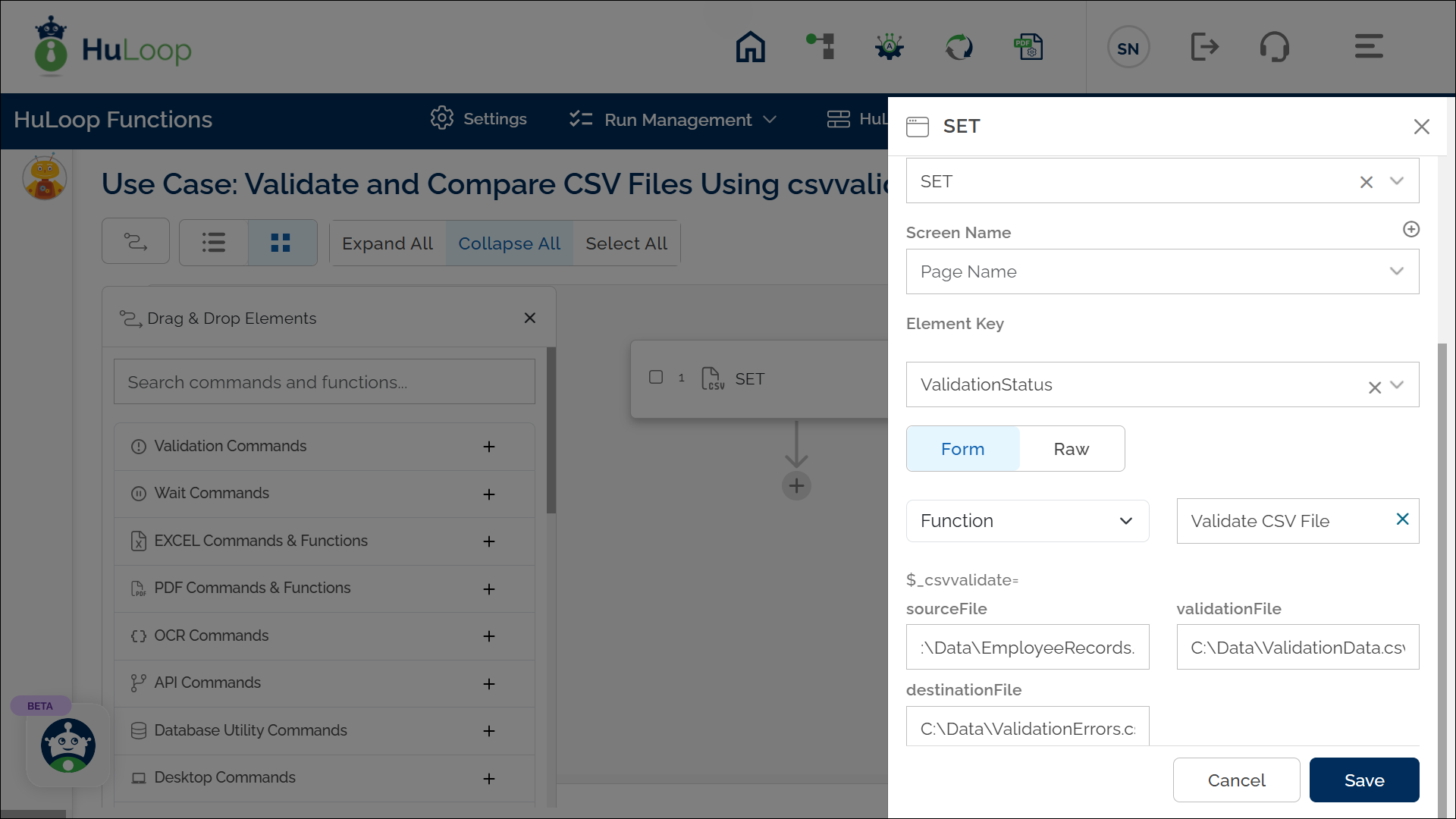

Card View

Outcome on Execution:

  • The command compares the data in the source file (EmployeeRecords.csv) with the validation file (ValidationData.csv).
  • Any discrepancies found during the comparison are logged in the destination file (ValidationErrors.csv).
  • If the validation is successful and no discrepancies are found, the variable (e.g., ValidationStatus) stores true.
  • If discrepancies are found or the operation fails (e.g., missing file paths), the variable stores false.
  • This variable can be referenced in subsequent automation steps using the syntax ${VariableName} (e.g., ${ValidationStatus}).
