FTP Functions: ftphandler

The FTP functions enable automation workflows to interact with an FTP (File Transfer Protocol) server. They support operations such as establishing a connection, downloading and uploading files, monitoring directories, creating directories, and closing the connection.

Prerequisites:

• FTP Server Credentials: Ensure you have the server IP, port, username, and password.

Available Commands & Configuration Steps:

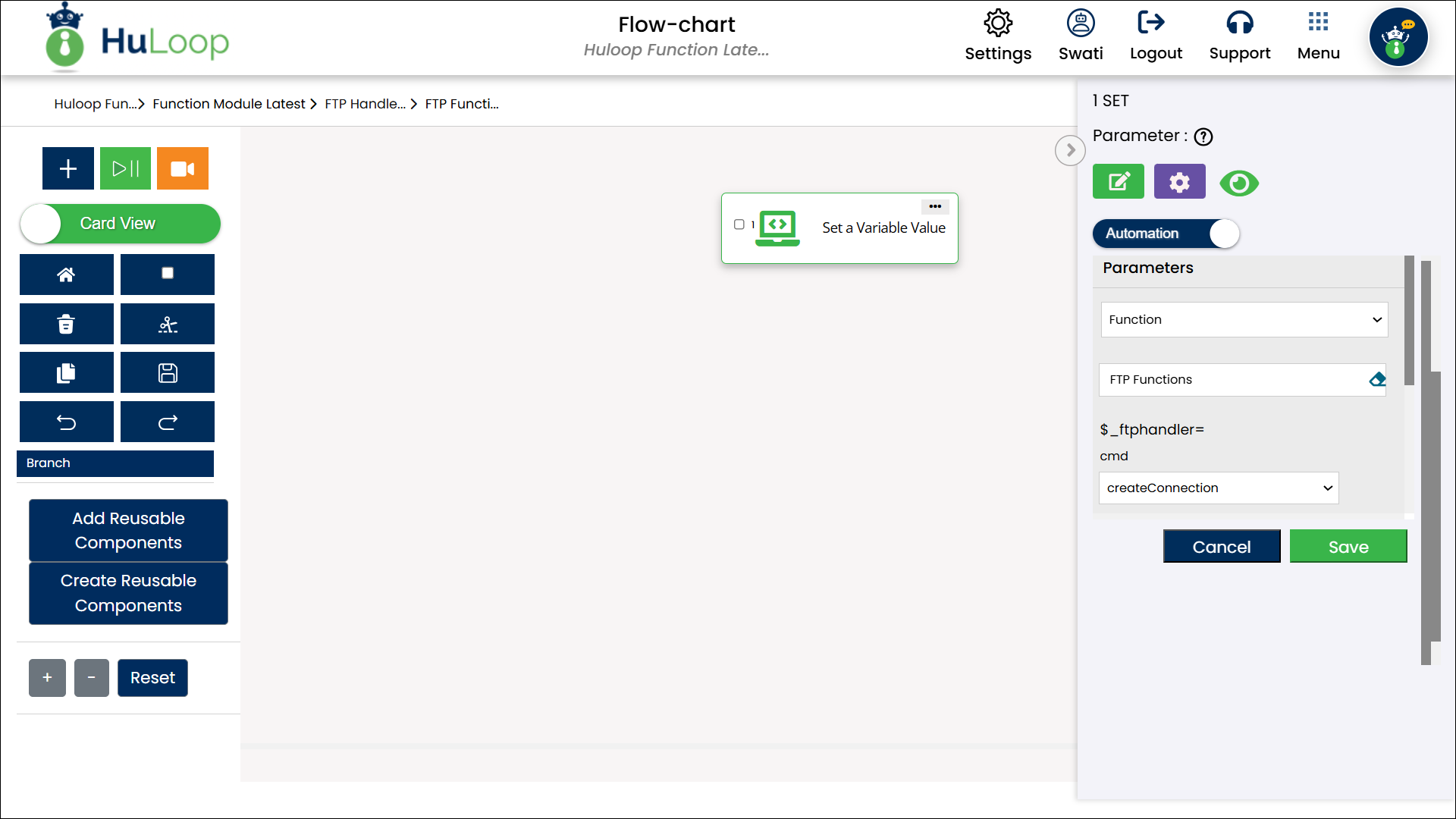

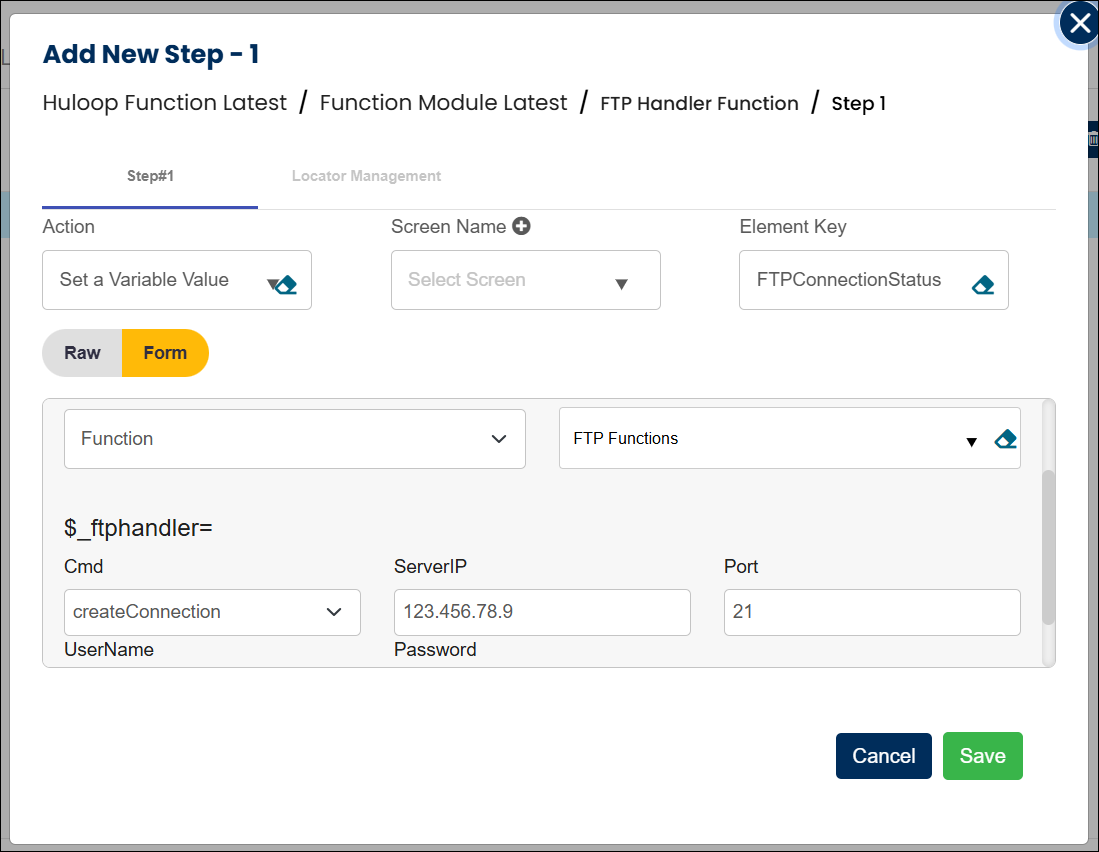

1. Create Connection (createConnection)

Establish a connection to the FTP server.

• • Action: Select Set a Variable Value from the Action dropdown.
  • Element Key: Enter a variable name to store the operation status (e.g., FTPConnectionStatus)
  • Parameters:
    • Select createConnection from the cmd dropdown.
    • ServerIP: Enter the FTP server’s IP address (e.g., 123.456.78.9).
    • Port: Enter the FTP server port (default is 21).
    • UserName: Enter your FTP username (e.g., ftp_user).
    • Password: Enter your FTP password (e.g., MyFtpPass123).

Outcome: Returns true if the connection is successful, otherwise false.

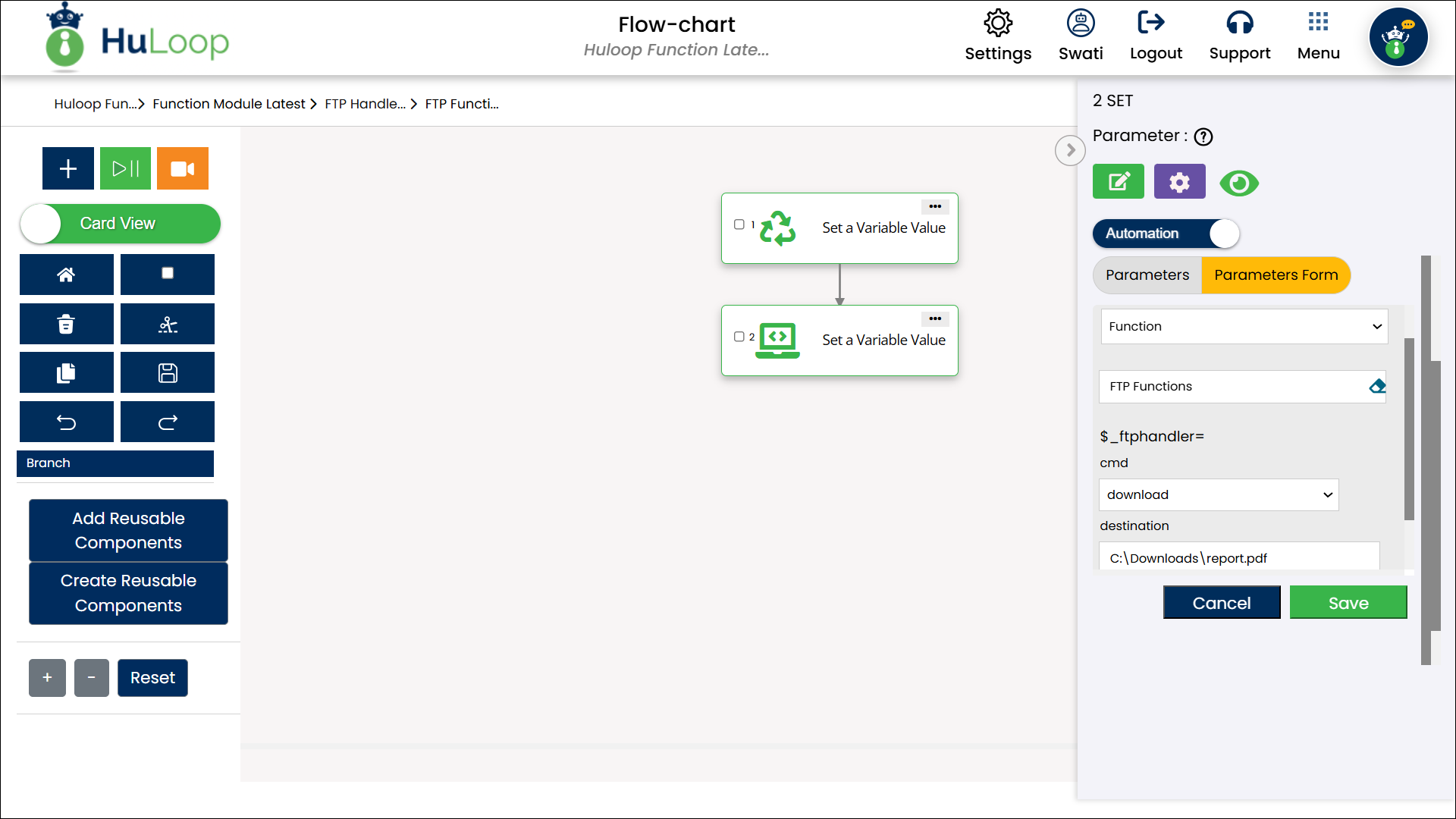

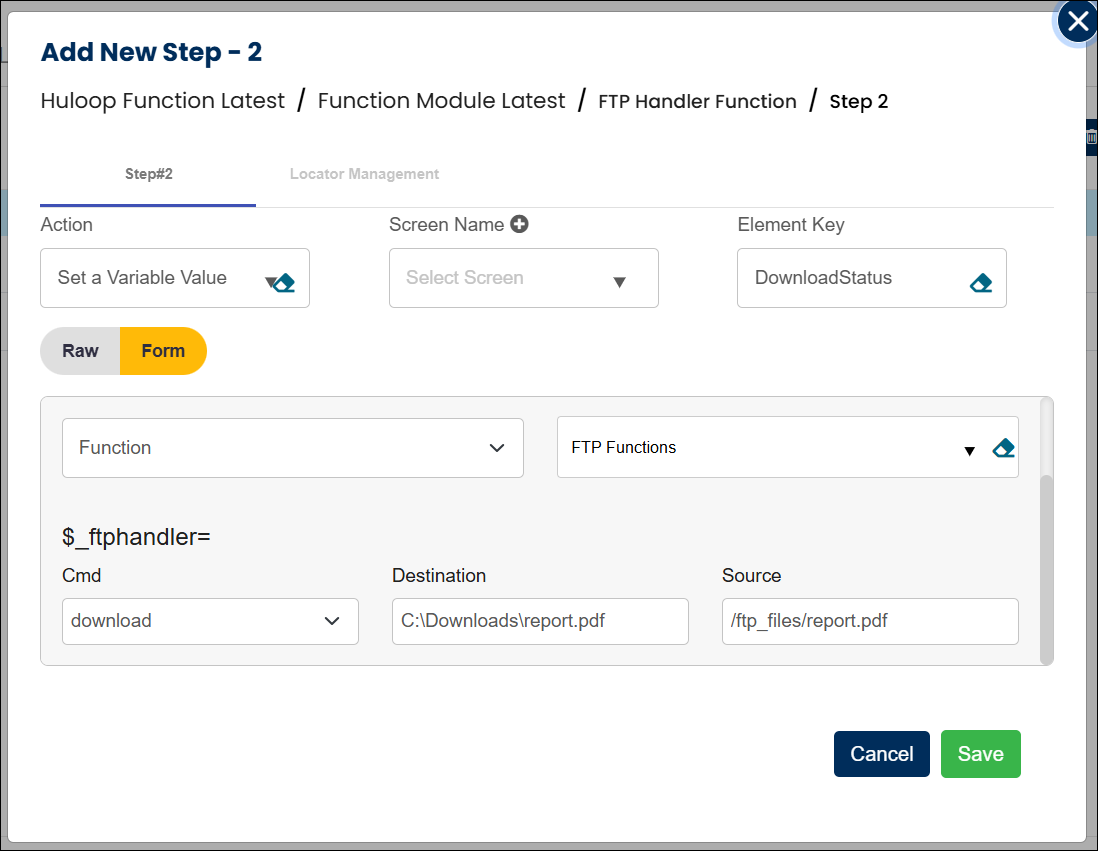

2. Download (download)

Downloads a file from the FTP server to a local directory.

• • Action: Select Set a Variable Value from the Action dropdown.
  • Element Key: Enter a variable name to store the operation status (e.g., DownloadStatus).
  • Parameters:
    • Select download from the cmd dropdown.
    • destination: Enter the local path where the file will be saved (e.g., C:Downloadsreport.pdf).
    • source: Enter the file path on the FTP server (e.g., /ftp_files/report.pdf).

Outcome: Returns true if the download is successful, otherwise false.

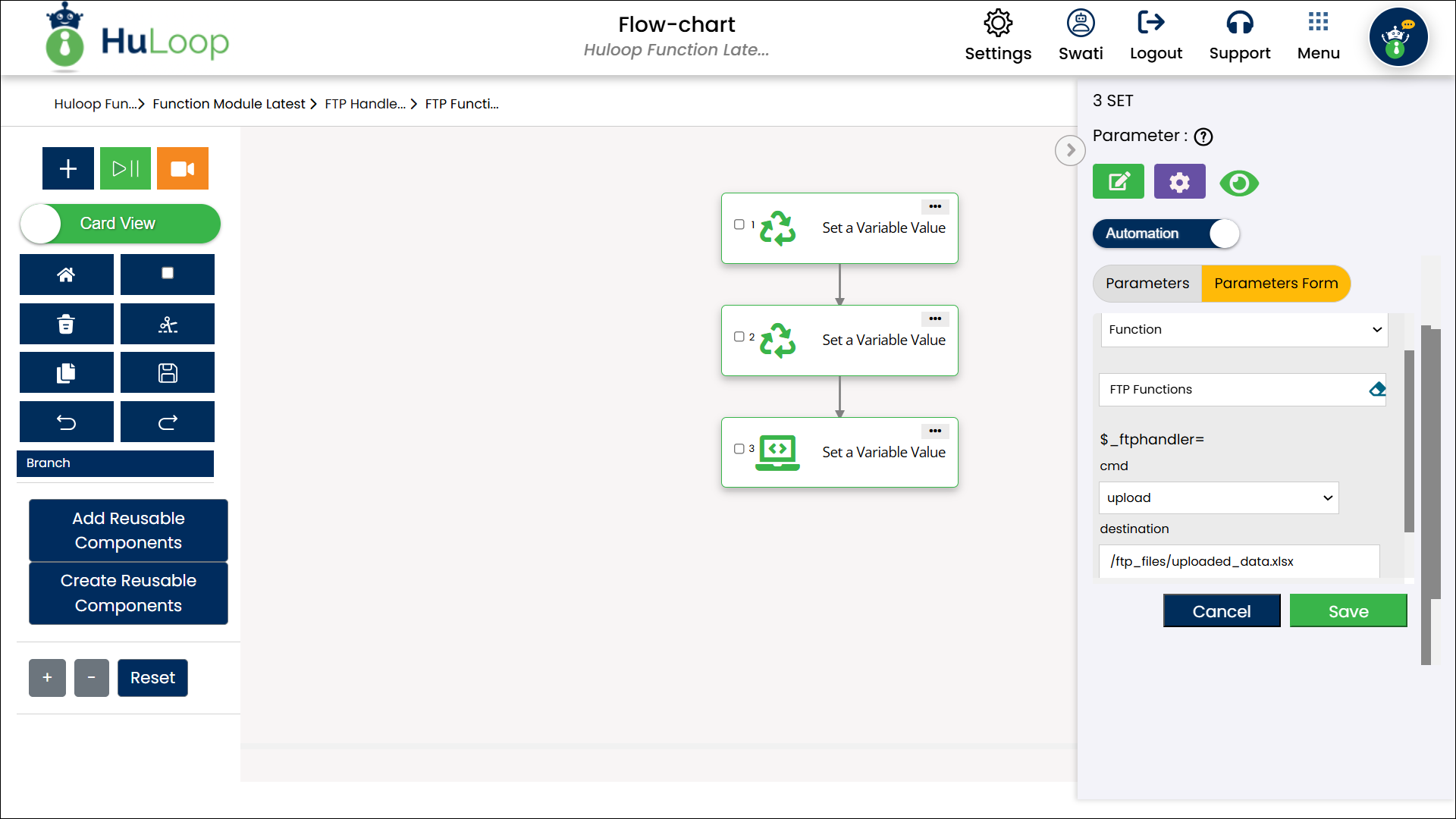

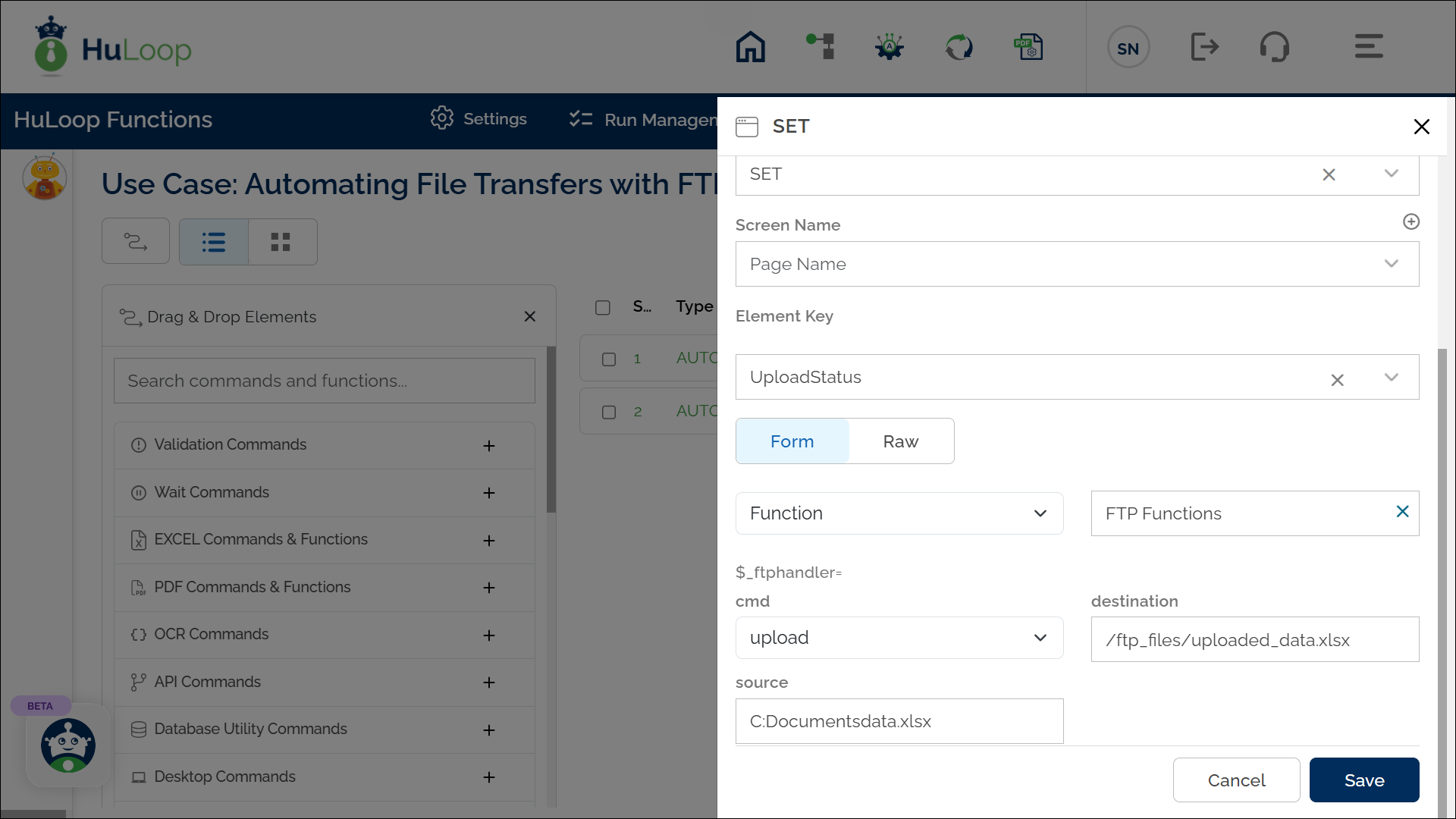

3. Upload (upload)

Uploads a file from a local directory to the FTP server.

• • Action: Select Set a Variable Value from the Action dropdown.
  • Element Key: Enter a variable name to store the operation status (e.g., UploadStatus).
  • Parameters:
    • Select upload from the Cmd dropdown.
    • destination: Enter the destination path on the FTP server (e.g., /ftp_files/uploaded_data.xlsx).
    • source: Enter the local file path to be uploaded (e.g., C:Documentsdata.xlsx).

Outcome: Returns true if the upload is successful, otherwise false.

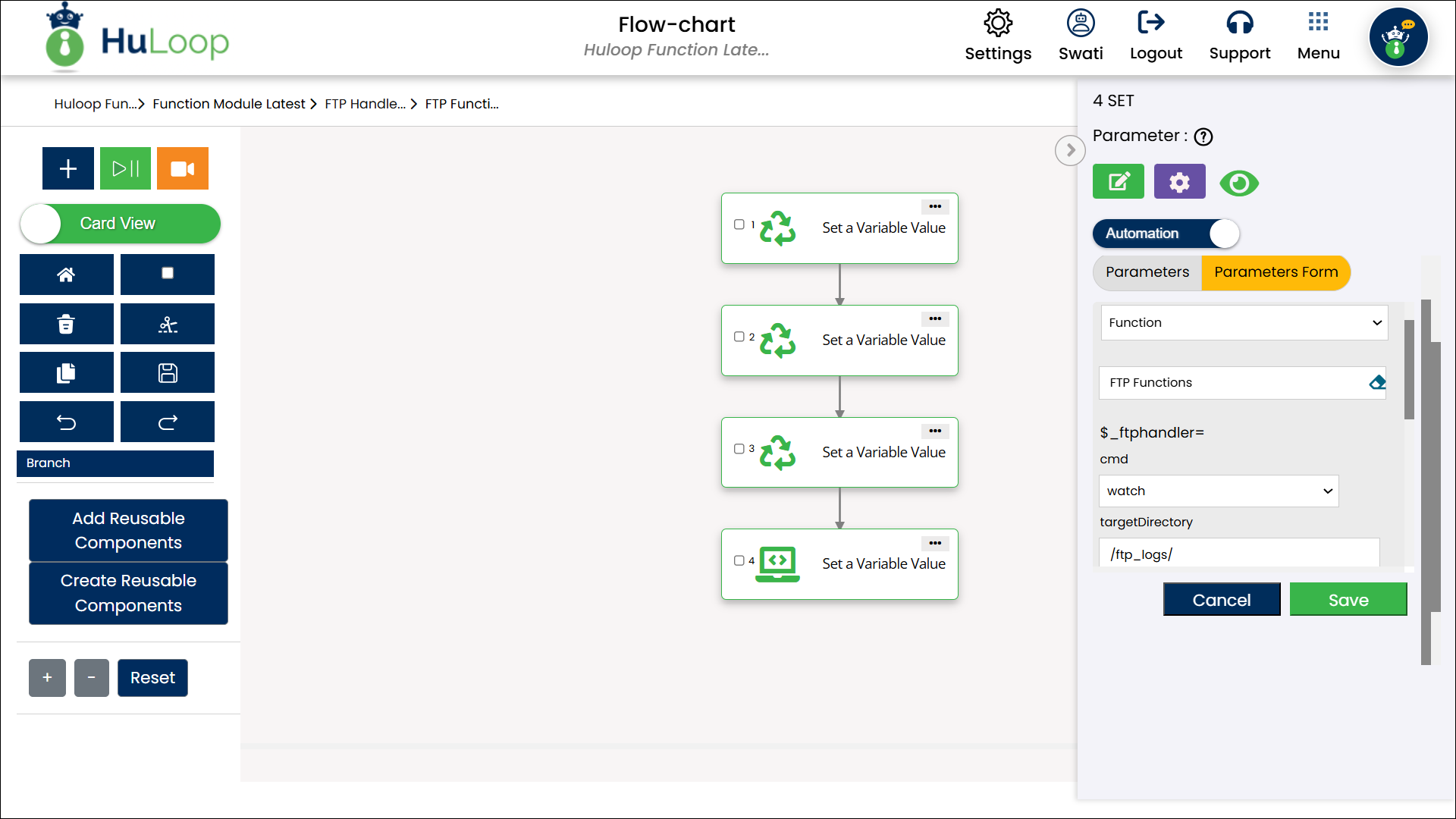

4. Watch (watch)

Monitors a directory on the FTP server for files with a specific extension.

• • Action: Select Set a Variable Value from the Action dropdown.
  • Element Key: Enter a variable name to store the operation status (e.g., WatchedFilePath).
  • Parameters:
    • Select watch from the Cmd dropdown.
    • TargetDirectory: Enter the FTP directory path to monitor (e.g., /ftp_logs/).
    • Extension: Enter the file extension to watch for (e.g., .csv).
    • Prefix (optional): Enter a filename prefix to filter, e.g., log_ (leave blank if not needed).
    • Timeout(optional): Enter the duration (in seconds) to wait for a file(e.g., 30).
    • OrderBy (optional): Choose sorting order (asc for ascending, desc for descending).
    • dateTime(dd/mm/yyyy hh:mm:ss): <TBD>

Outcome: Returns the path of the detected file if found within the timeout period, otherwise null.

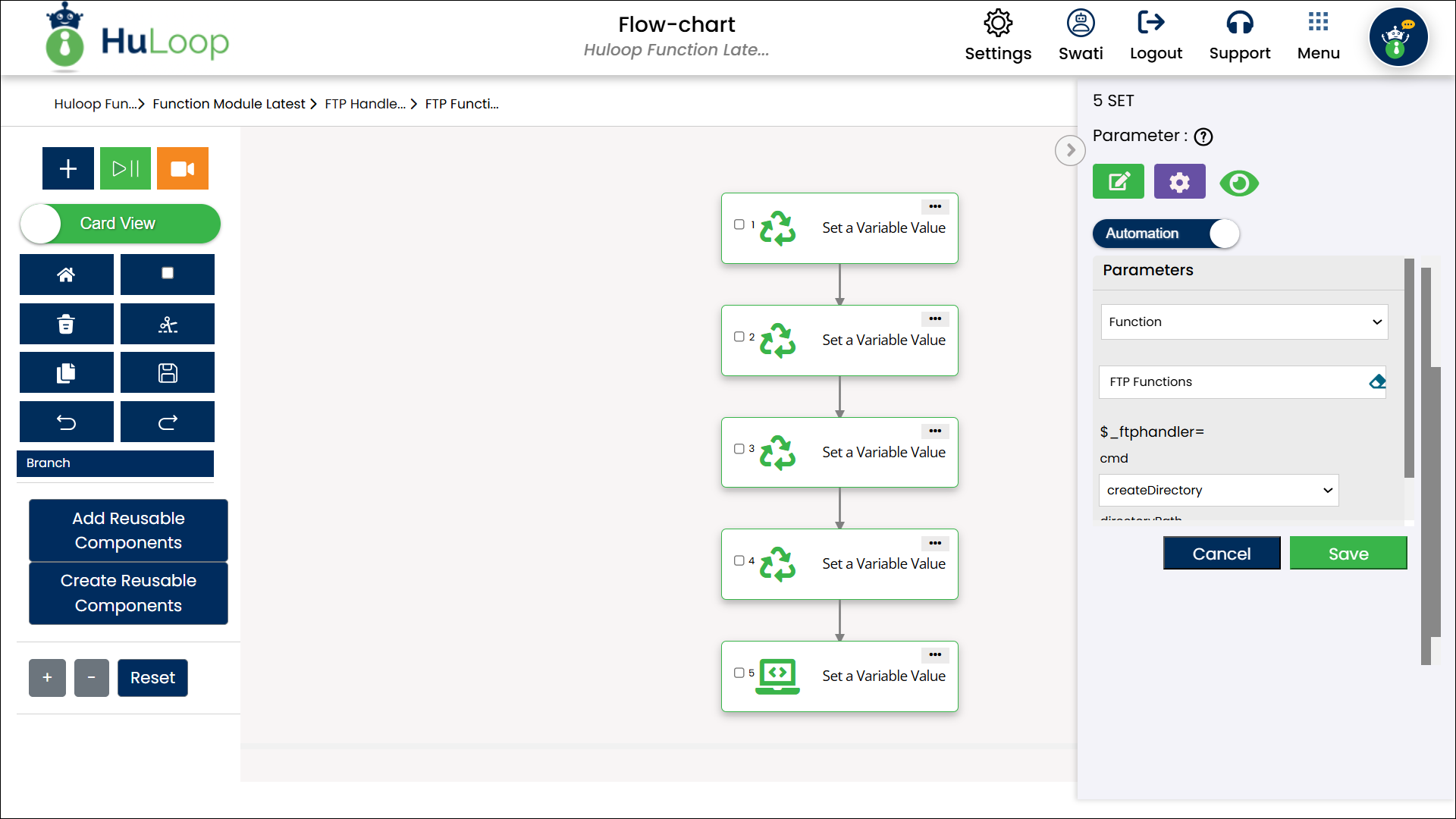

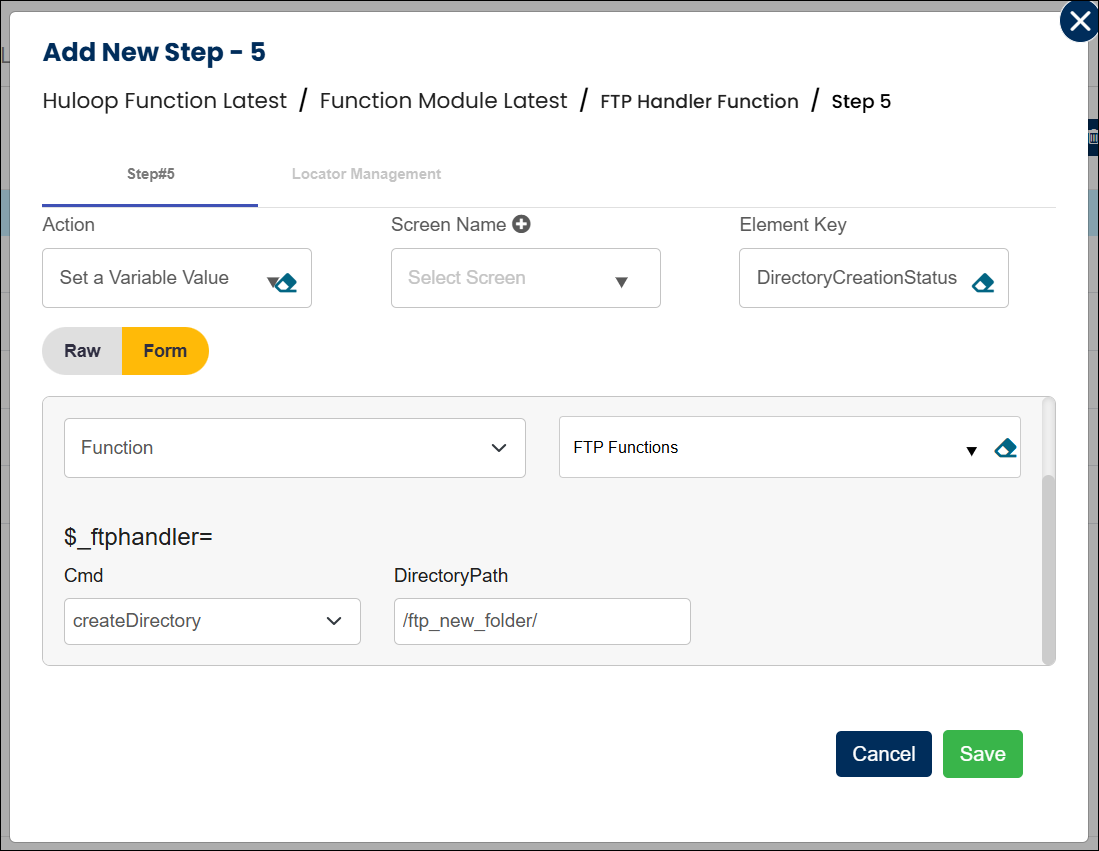

5. Create Directory (createDirectory)

Creates a new directory on the FTP server.

• • Action: Select Set a Variable Value from the Action dropdown.
  • Element Key: Enter a variable name to store the operation status (e.g., DirectoryCreationStatus).
  • Parameters:
    • DirectoryPath: Enter the path of the directory to be created on the FTP server (e.g., /ftp_new_folder/)

Outcome: Returns true if the directory is successfully created, otherwise false.

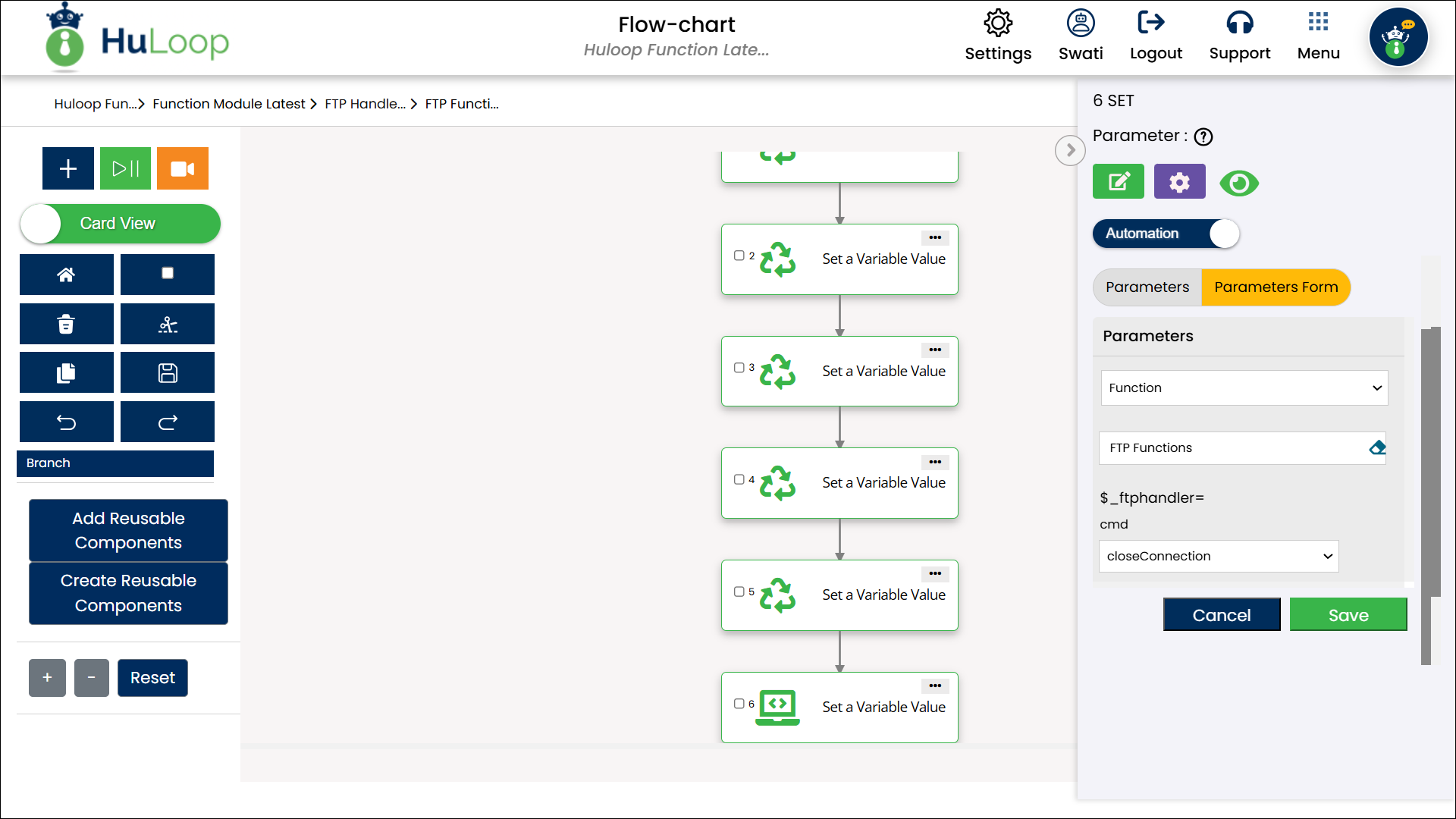

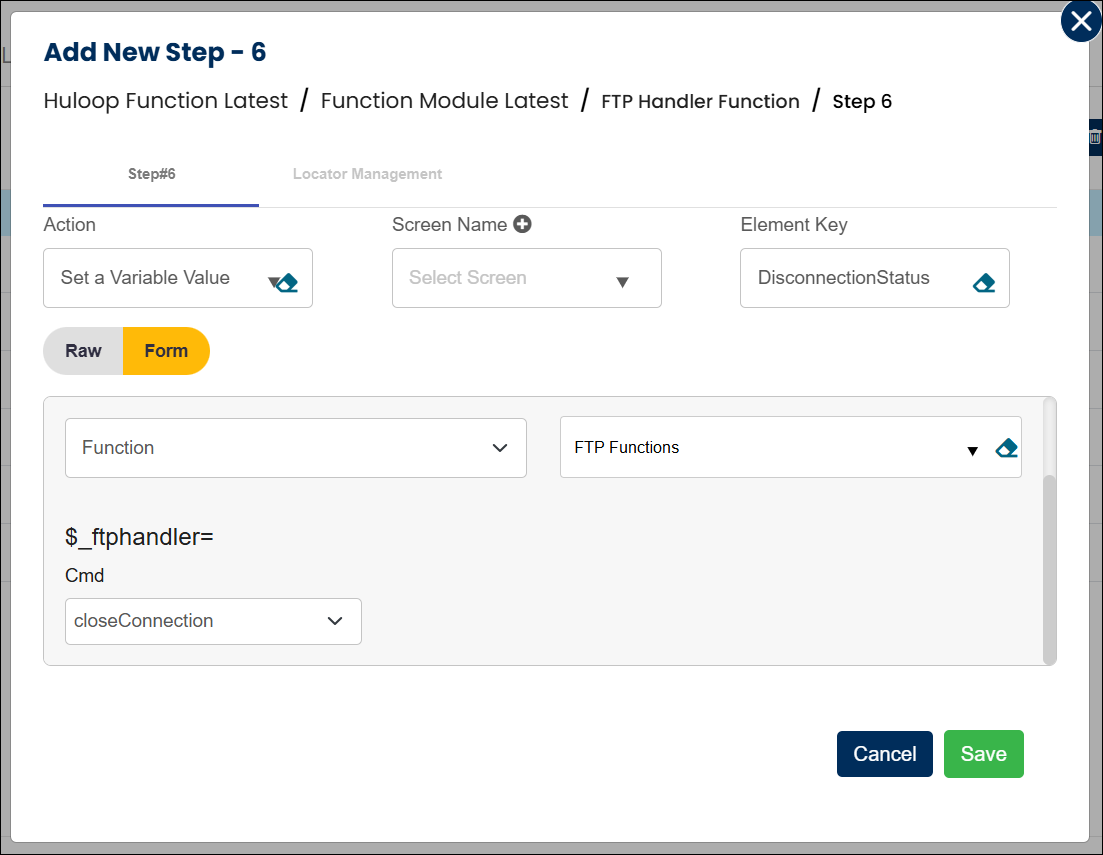

6. Close Connection (closeConnection)

Terminates the connection to the FTP server.

• • Action: Select Set a Variable Value from the Action dropdown.
  • Element Key: Enter a variable name to store the disconnection status (e.g., DisconnectionStatus).
  • Parameters:
    • Cmd: Select closeConnection.

Outcome: Returns true if the connection is successfully closed, otherwise false.
