SFTP Functions: sftphandler

The SFTP functions enable automation workflows to interact with an SFTP (Secure File Transfer Protocol) server. They support operations such as creating a connection, downloading and uploading files, monitoring directories, creating directories, and closing the connection.

Prerequisites:

• SFTP Server Credentials: Ensure you have the server IP, port, username, and password.

Available Commands:

1. Create Connection (createConnection): Establishes a connection to the SFTP server.
2. Download (download): Retrieves files from the SFTP server to a local directory.
3. Upload (upload): Sends files from a local directory to the SFTP server.
4. Watch (watch): Monitors a specified directory on the SFTP server for files with a particular extension.
5. Create Directory (createDirectory): Creates a new directory on the SFTP server.
6. Close Connection (closeConnection): Terminates the connection to the SFTP server.

Steps to Configure Each Command:

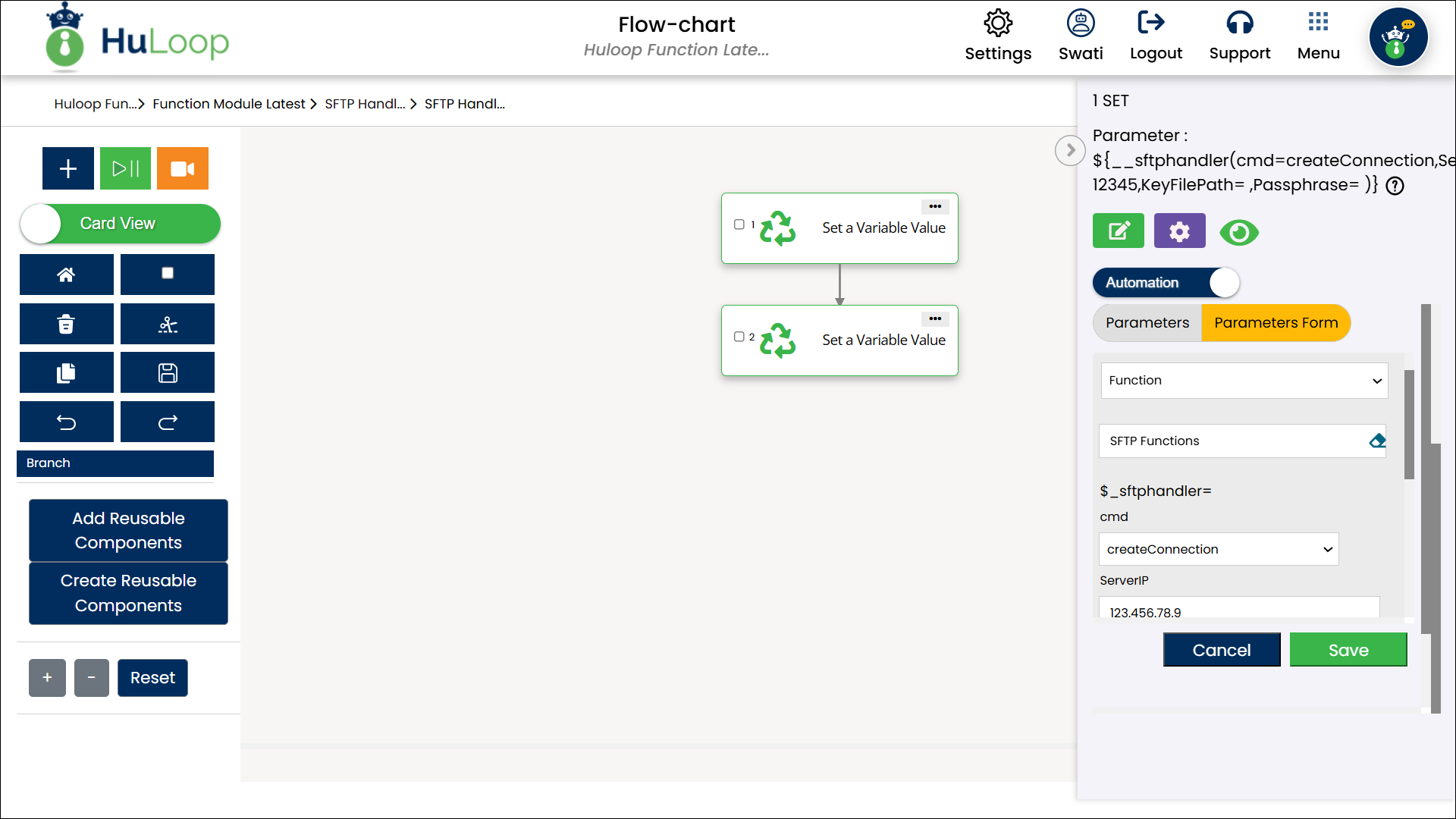

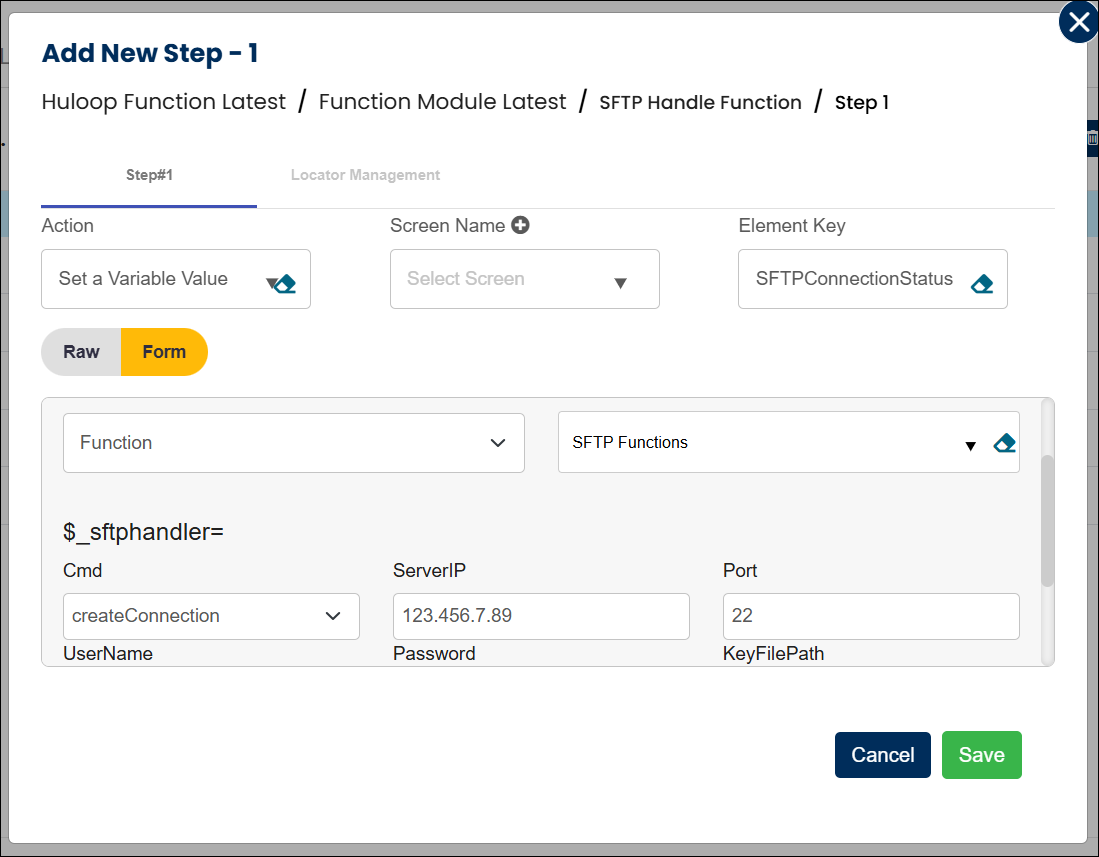

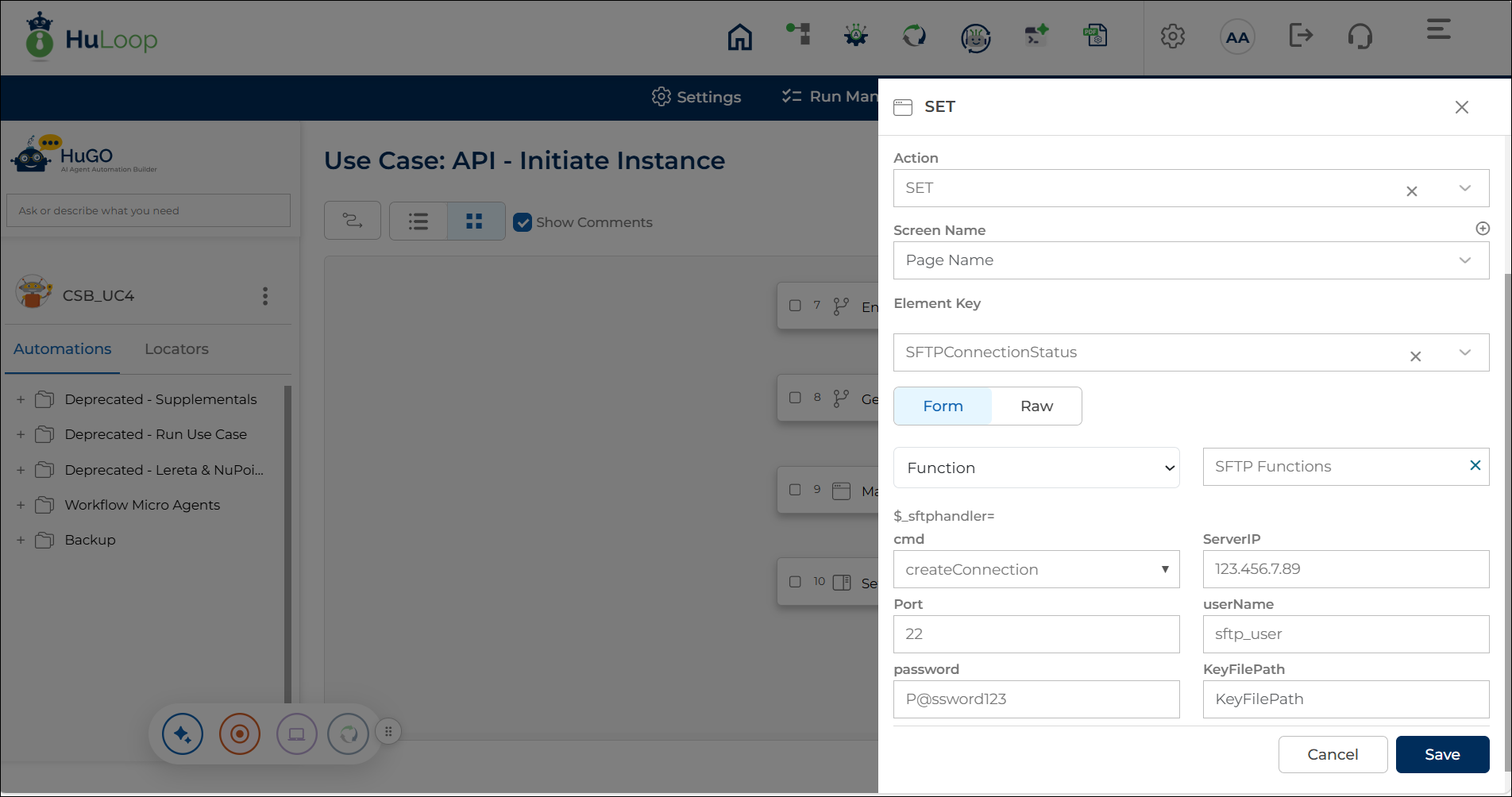

1. Create Connection (createConnection)

Establish a connection to the SFTP server.

• • Action: Select Set a Variable Value from the Action dropdown.
  • Element Key: Enter a variable name to store the connection status (e.g., SFTPConnectionStatus).
  • Parameters:
    • Cmd: Select createConnection.
    • ServerIP: Enter the SFTP server’s IP address (e.g., 123.456.7.89).
    • Port: Enter the port number (default is 22).
    • UserName: Enter your SFTP username (e.g., sftp_user).
    • Password: Enter your SFTP password (e.g., P@ssword123).

• • Outcome: Returns true if the connection is successful; otherwise, returns false.

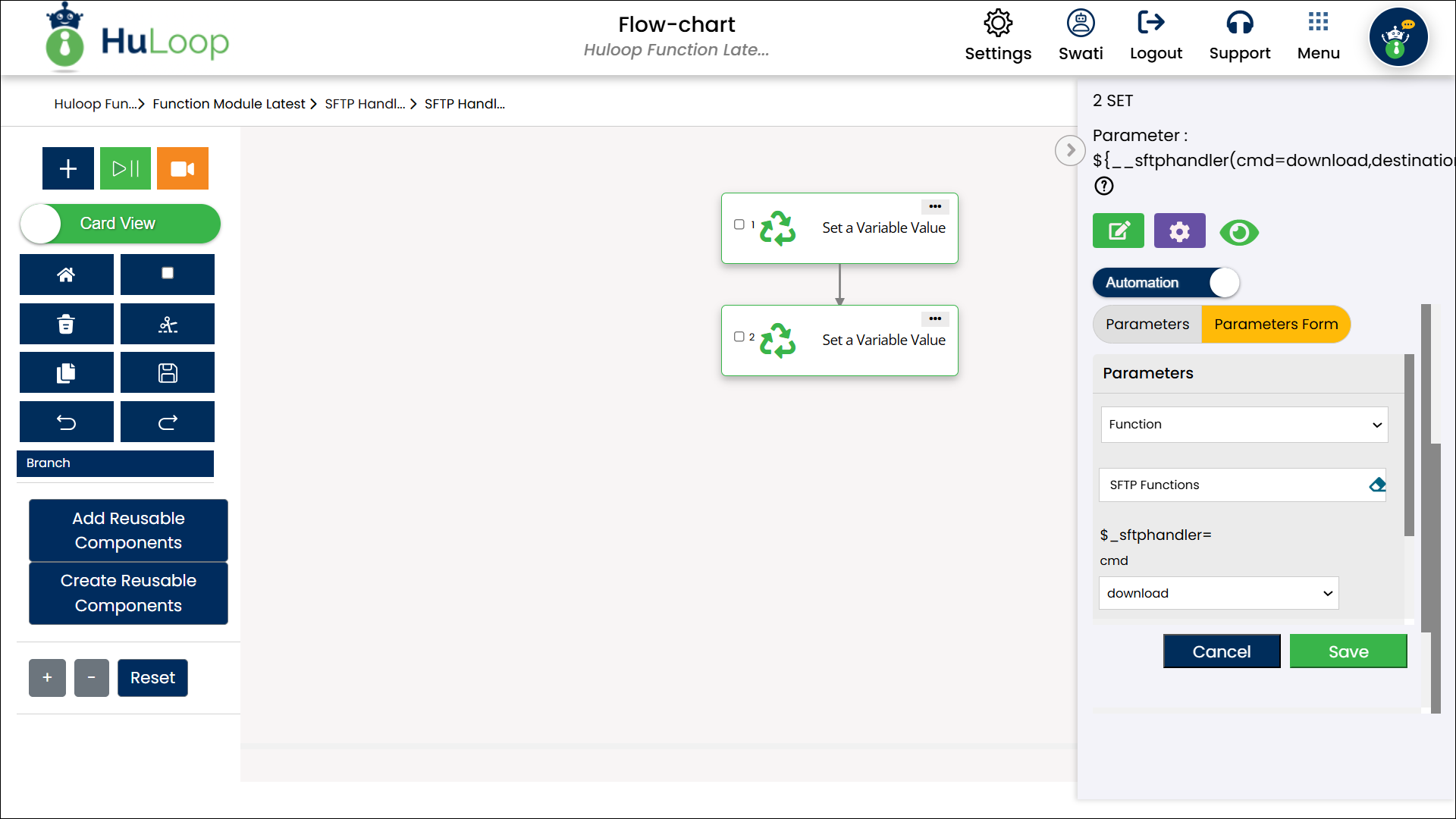

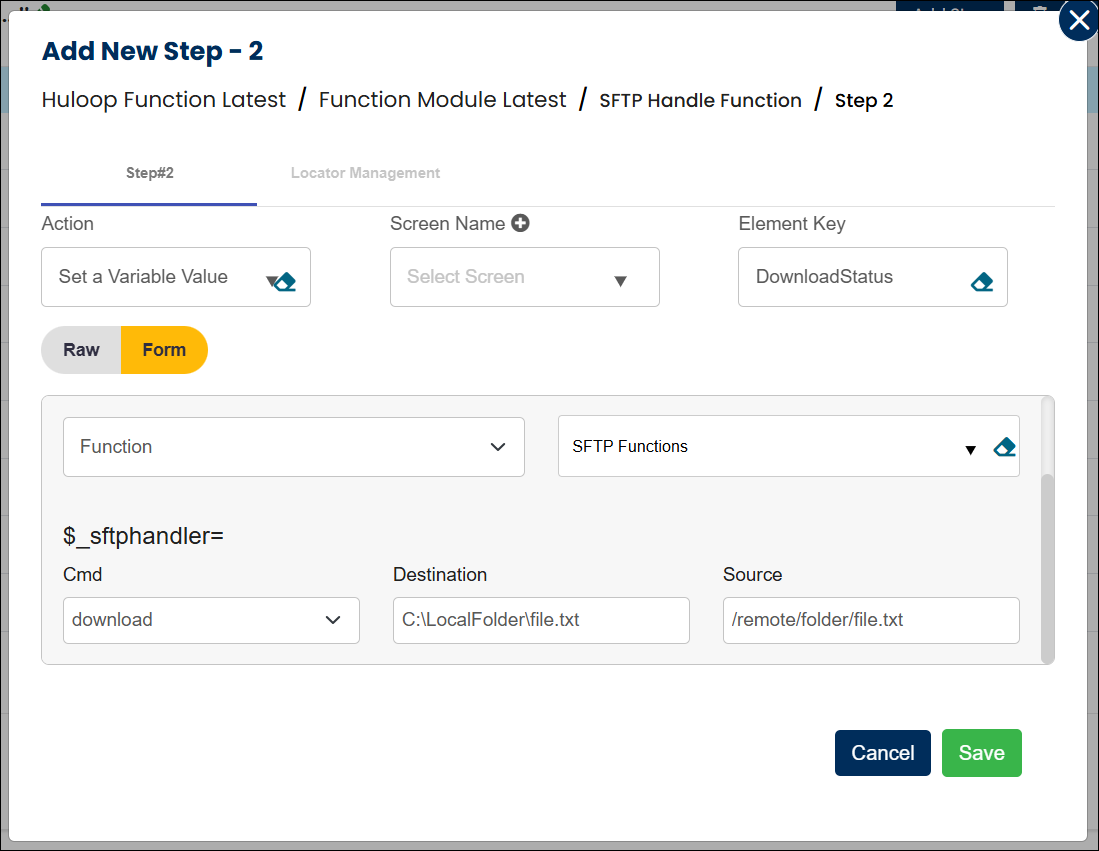

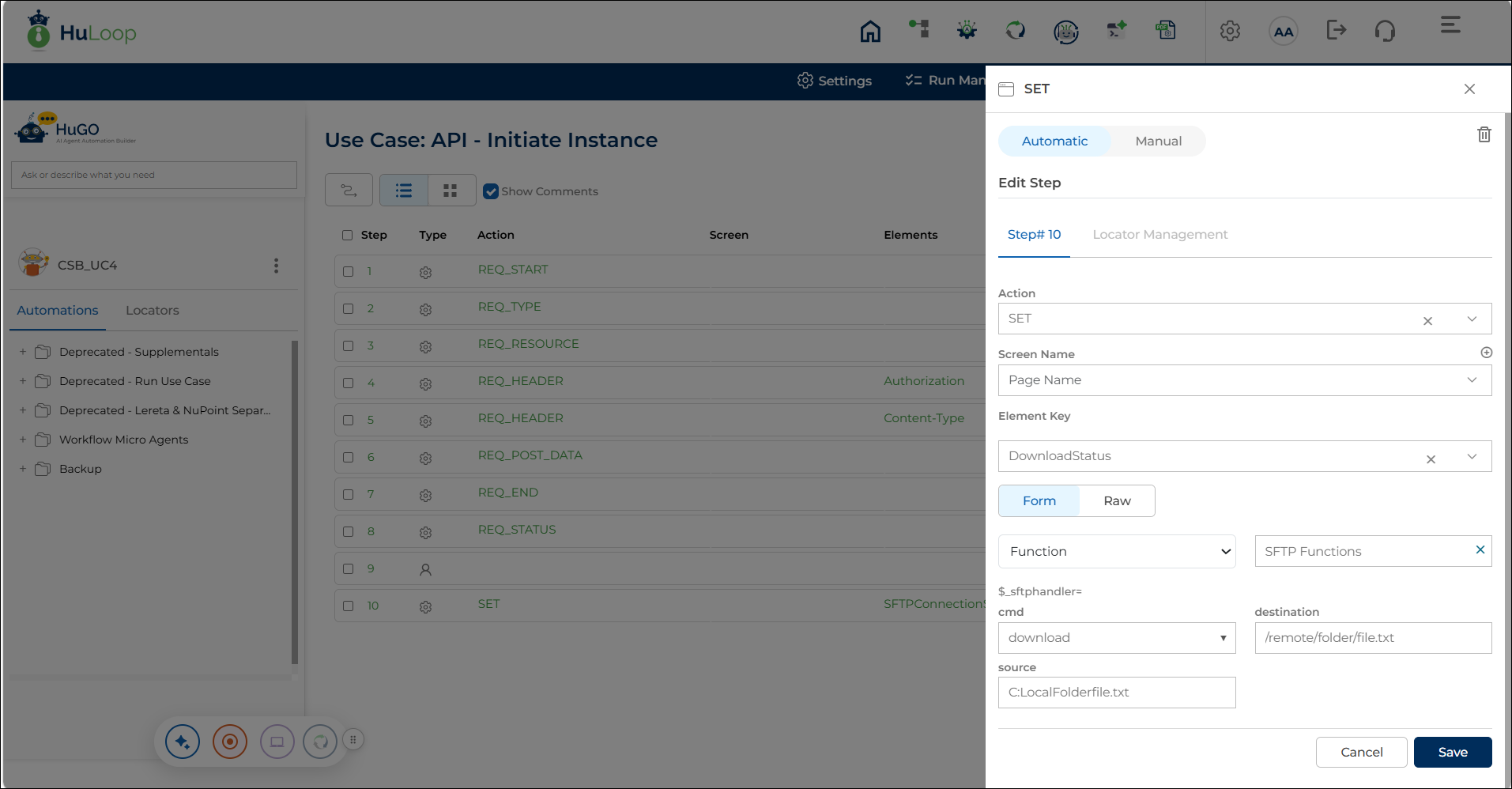

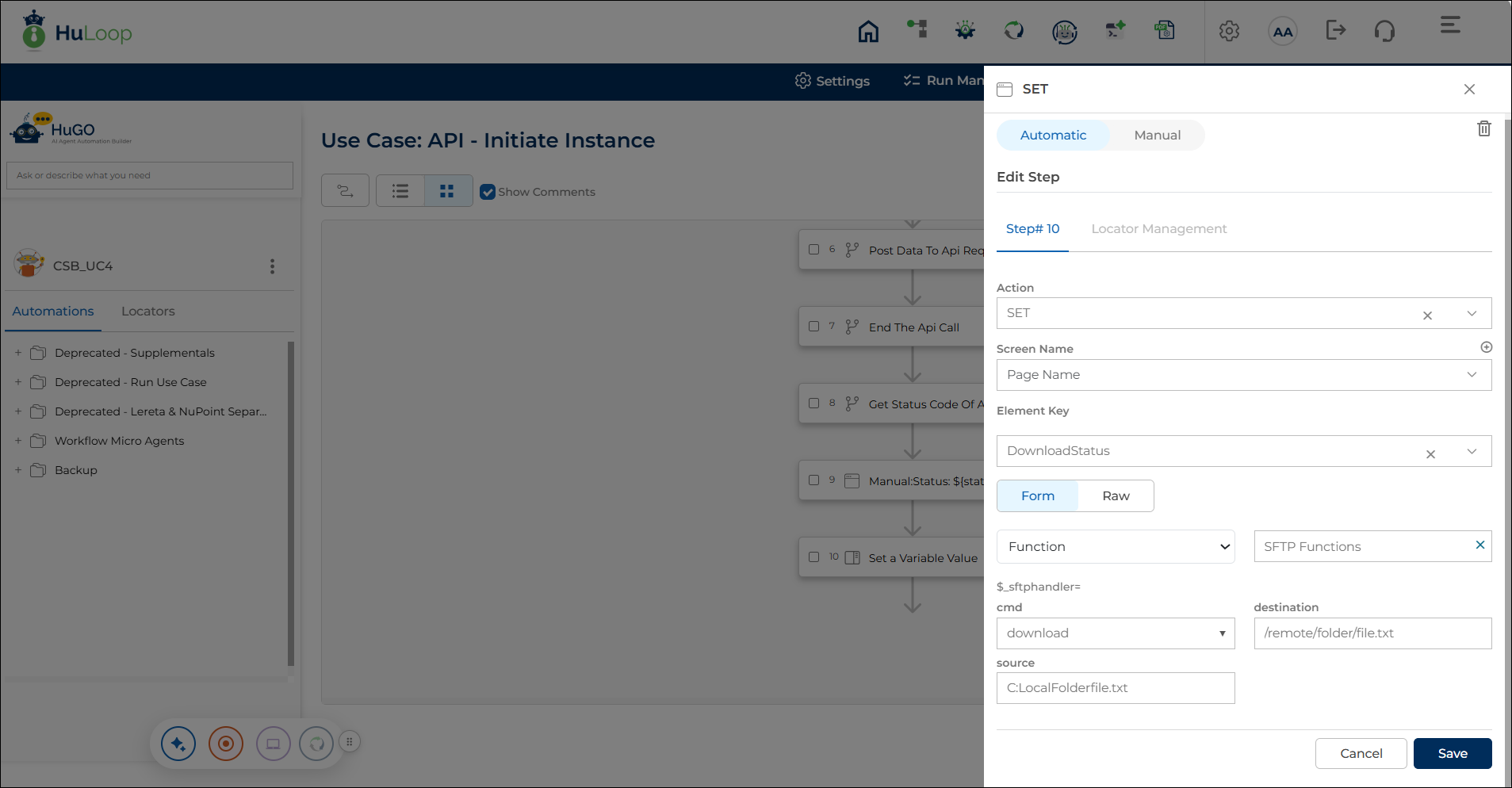

2. Download (download)

Download files from the SFTP server.

• • Action: Select Set a Variable Value from the Action
    dropdown.
  • Element Key: Enter a variable name to store the download status (e.g., DownloadStatus).
  • Parameters:
    • Cmd: Select download.
    • destination: Specify the path of the file on the SFTP server (e.g.,
      /remote/folder/file.txt).
    • source: Specify the local directory path where the file will be saved (e.g.,
      C:LocalFolderfile.txt).

• • Outcome: Returns true if the download is successful; otherwise, returns
    false.

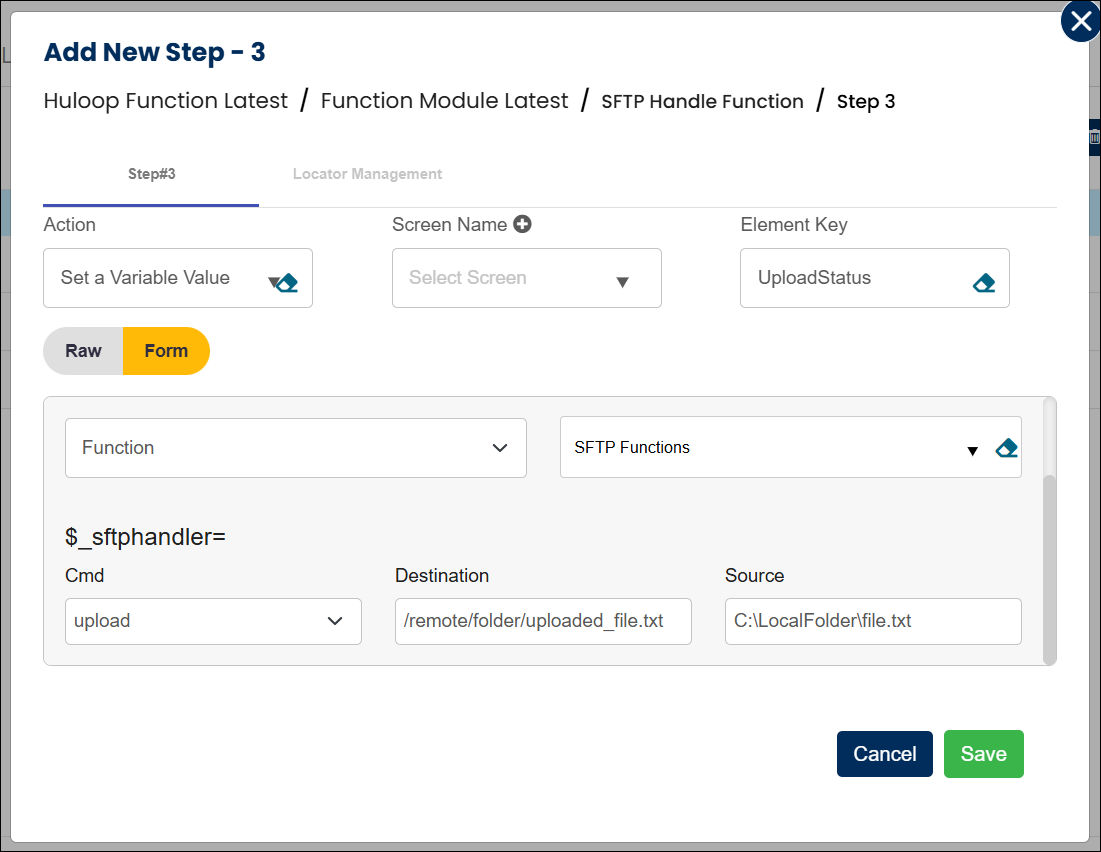

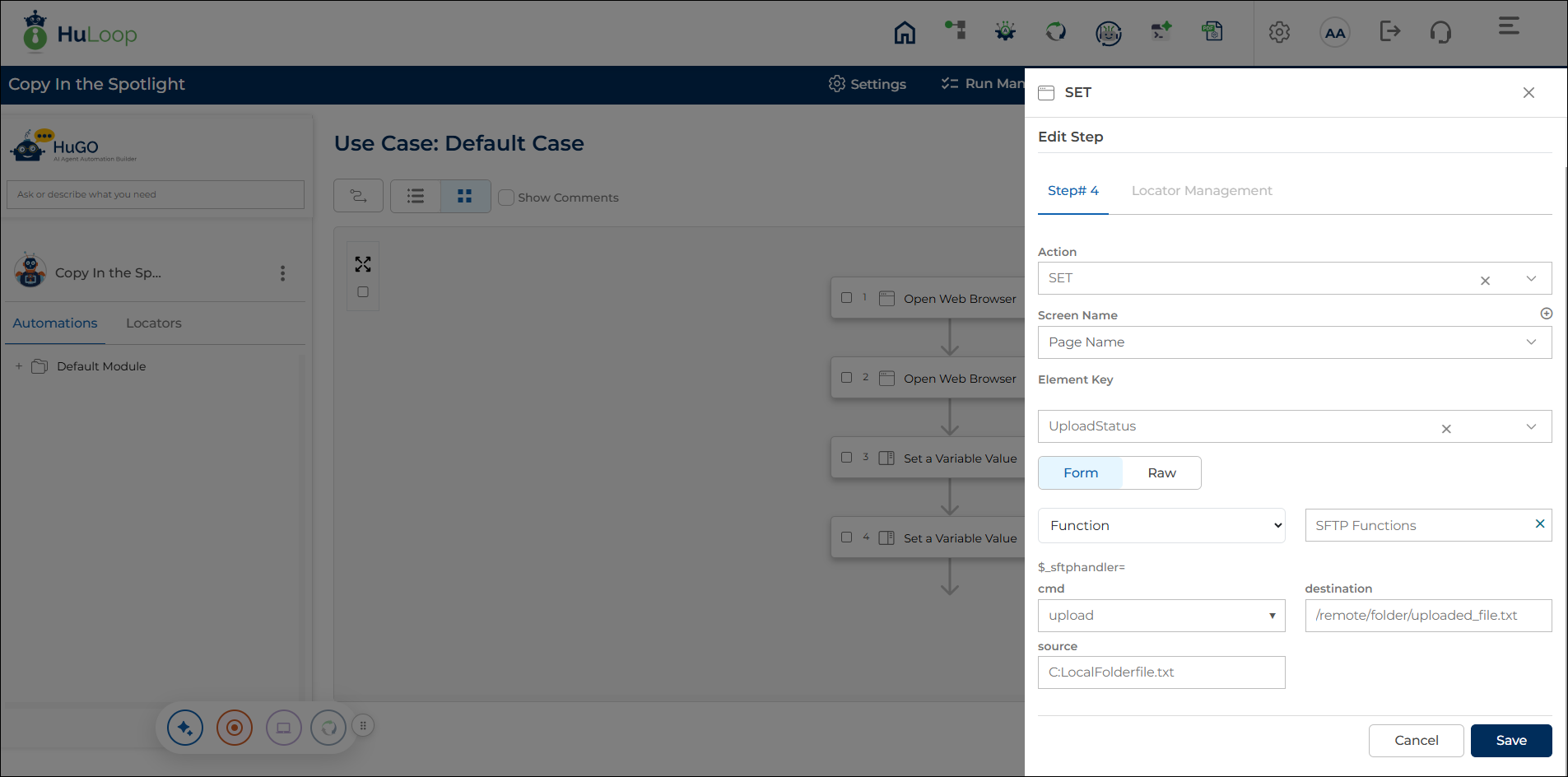

3. Upload (upload)

Upload files to the SFTP server.

• • Action: Select Set a Variable Value from the Action
    dropdown.
  • Element Key: Enter a variable name to store the upload status (e.g., UploadStatus).
  • Parameters:
    • Cmd: Select upload.
    • destination: Specify the destination path on the SFTP server (e.g.,
      /remote/folder/uploaded_file.txt).
    • source: Specify the local file path to be uploaded (e.g., C:LocalFolderfile.txt).

• • Outcome: Returns true if the upload is successful; otherwise, returns
    false.

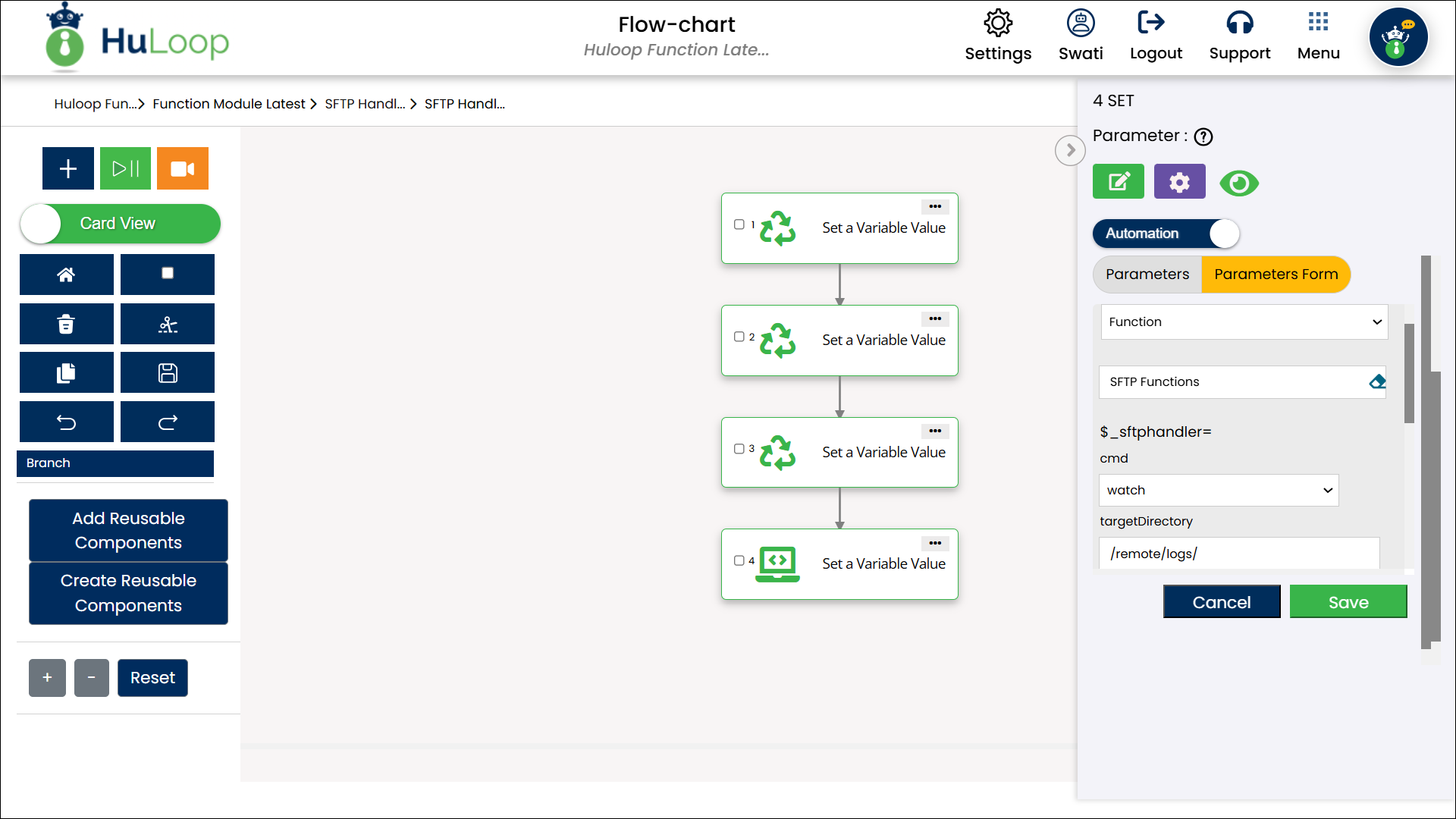

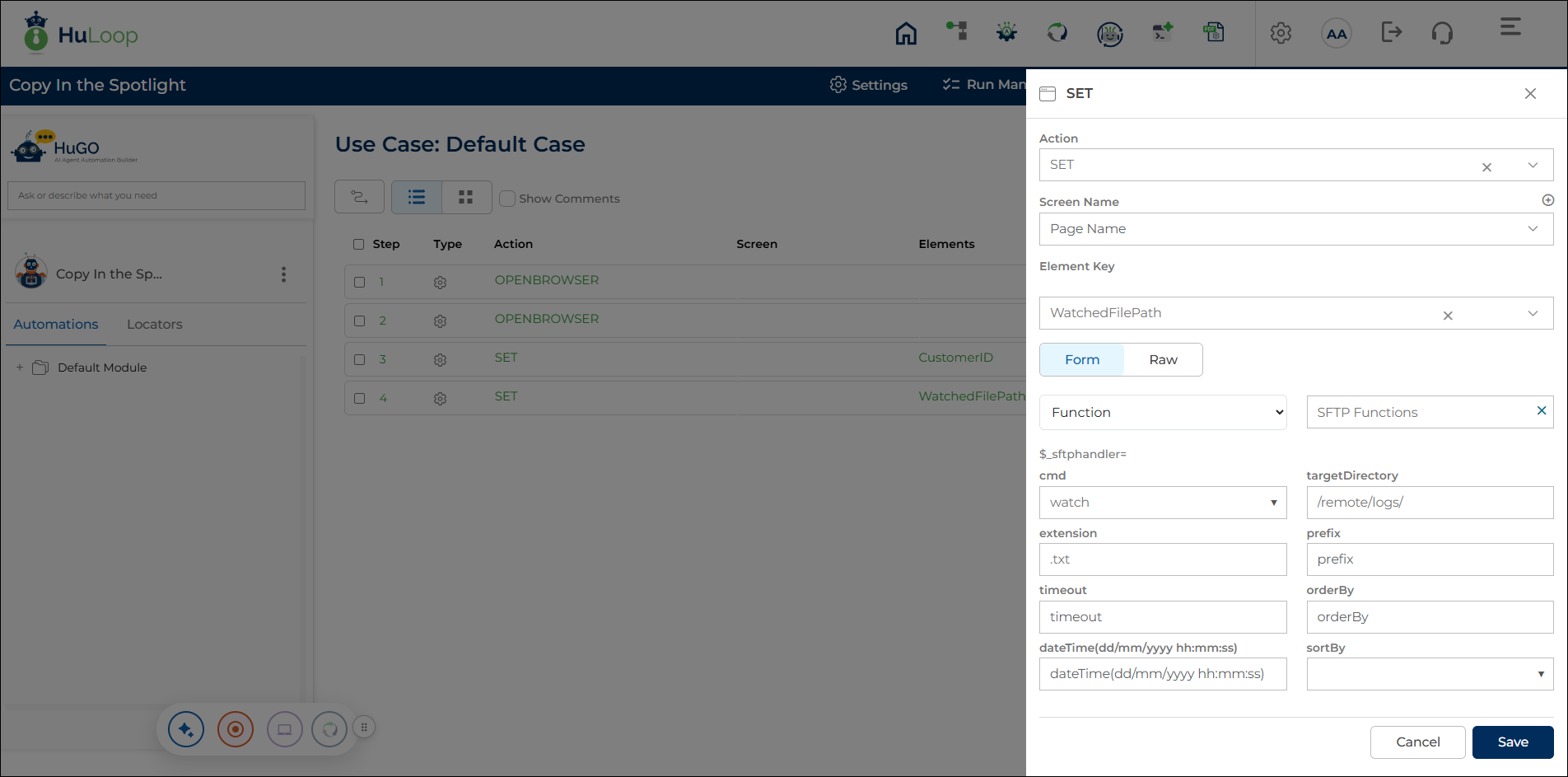

4. Watch (watch):

Monitor a directory on the SFTP server for files with a specific extension.

• • Action: Select Set a Variable Value from the Action dropdown.
    dropdown.
  • Element Key: Enter a variable name to store the path of the detected file (e.g.,
    WatchedFilePath).
  • Parameters:
    • Cmd: Select watch.
    • remotePath: Specify the directory path on the SFTP server to monitor (e.g.,
      /remote/logs/).
    • extension: Specify the file extension to watch for (e.g., .txt).
    • prefix: (Optional) Specify a filename prefix to filter.
    • timeout: (Optional) Set the duration (in seconds) to wait for a file to appear.
    • orderBy: (Optional) Specify the order criterion (e.g., dateTime).
    • sortBy: (Optional) Specify the sort order (asc for ascending, desc for descending).

• • Outcome: Returns the path of the detected file if found within the timeout period; otherwise,
    returns null.

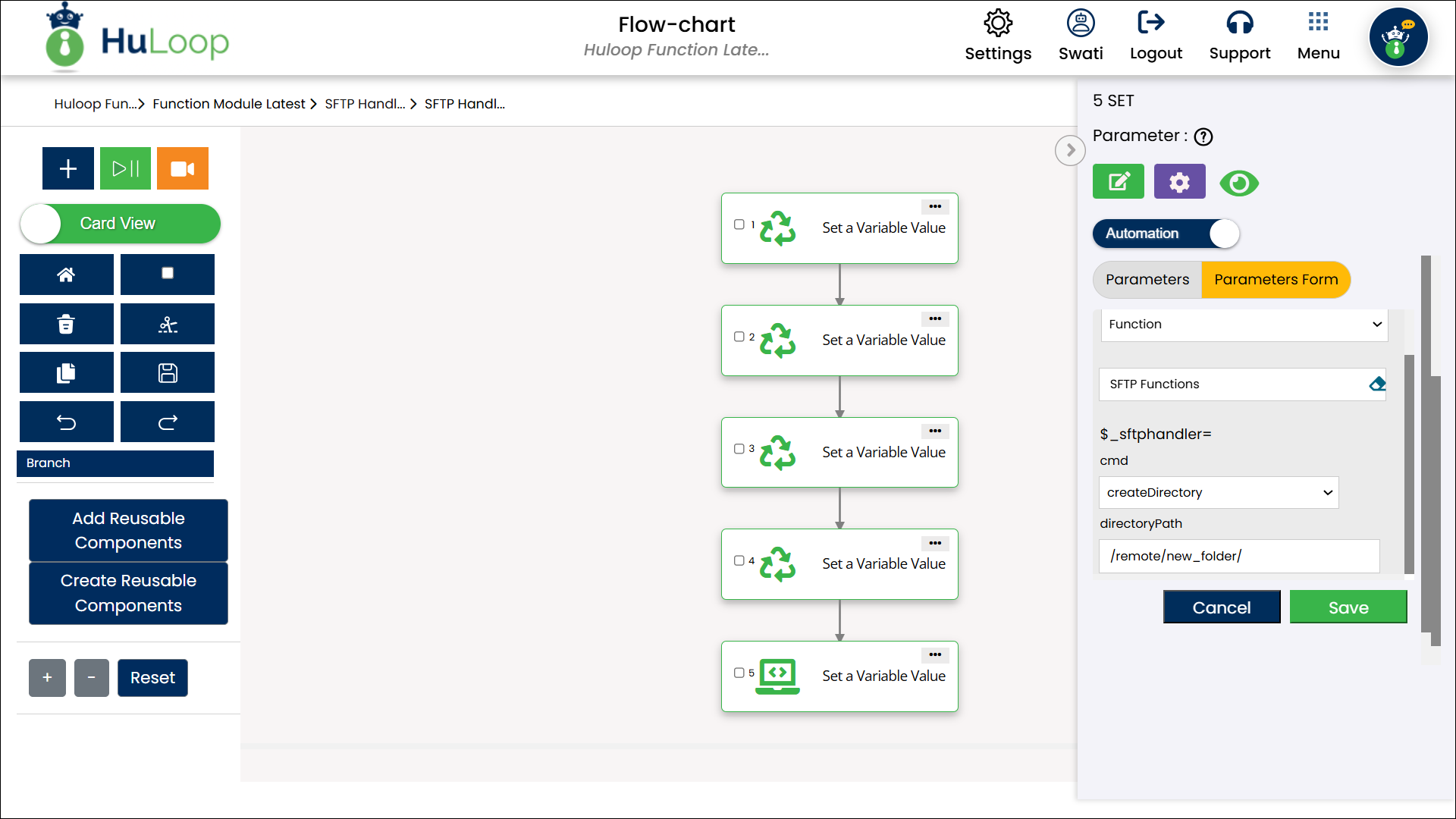

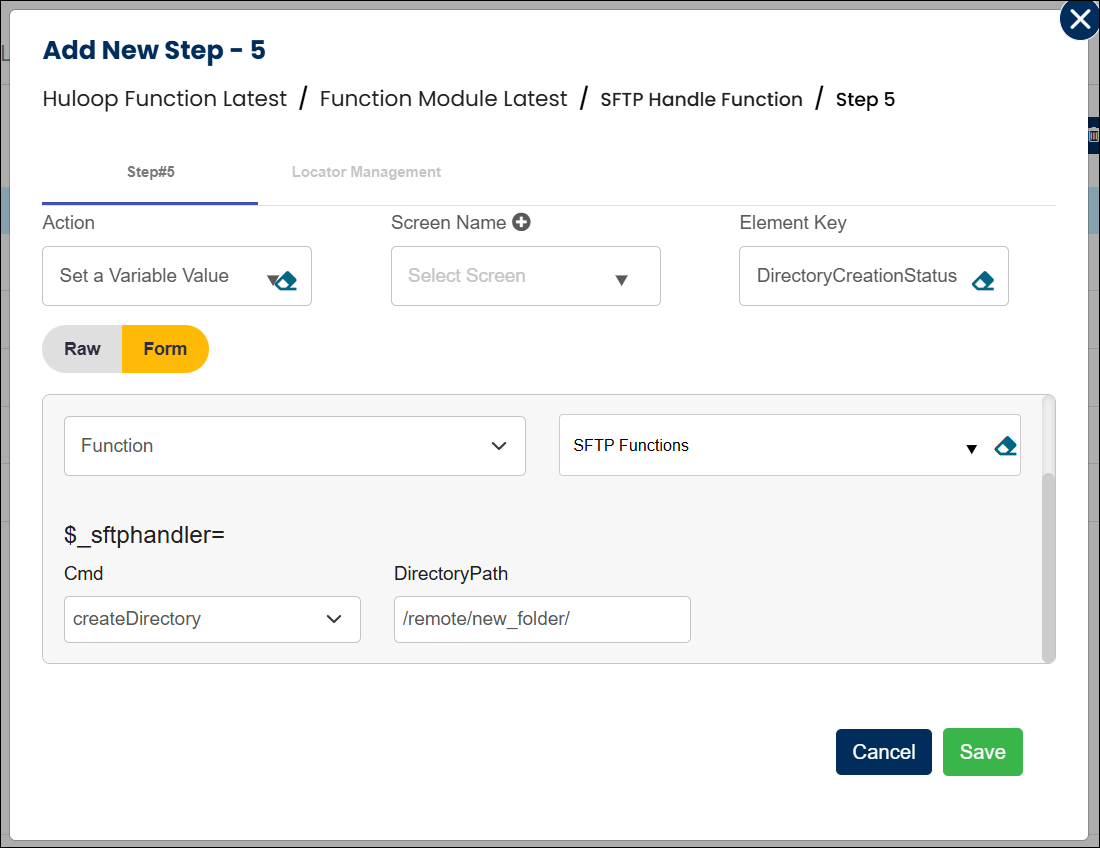

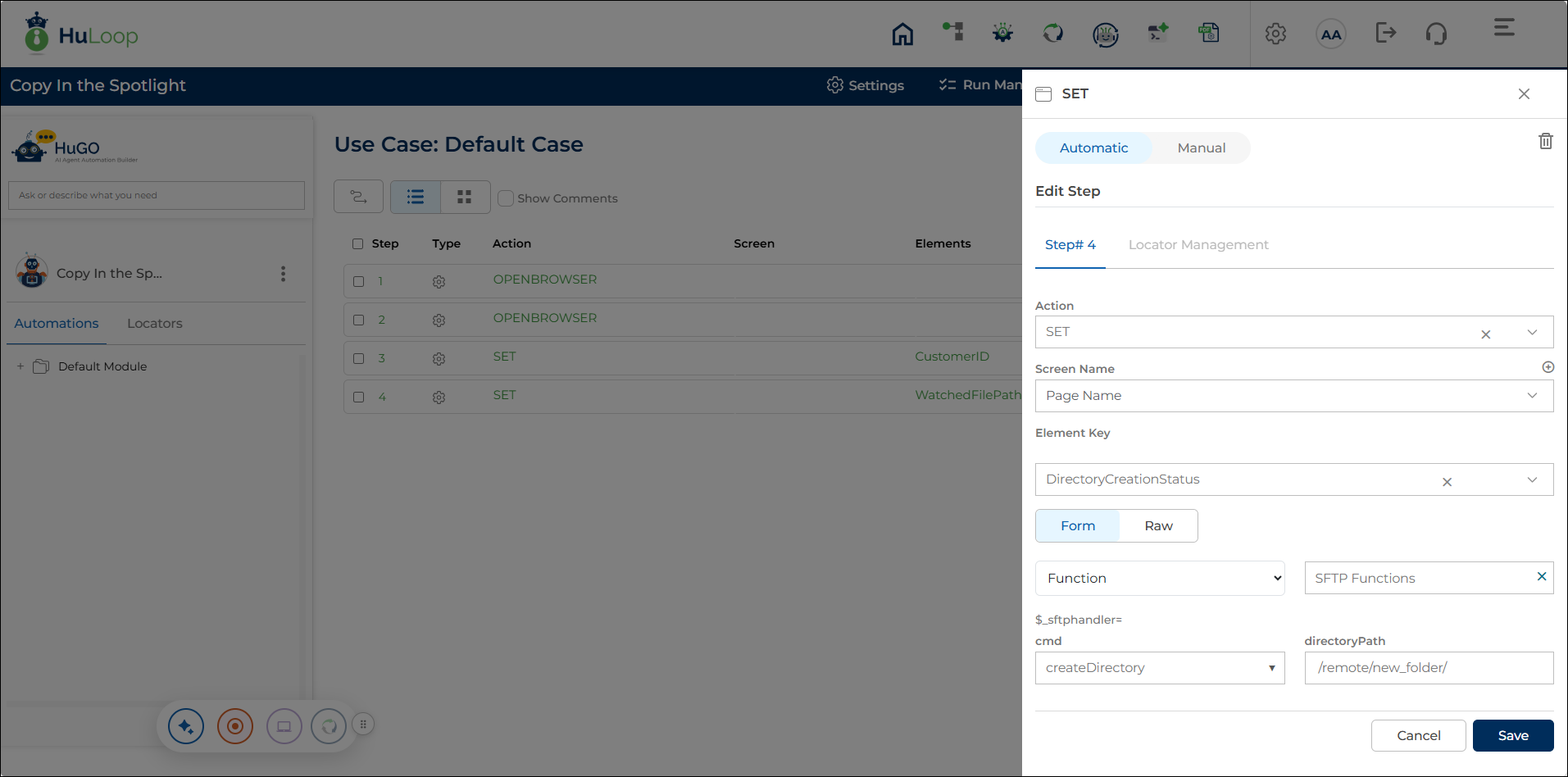

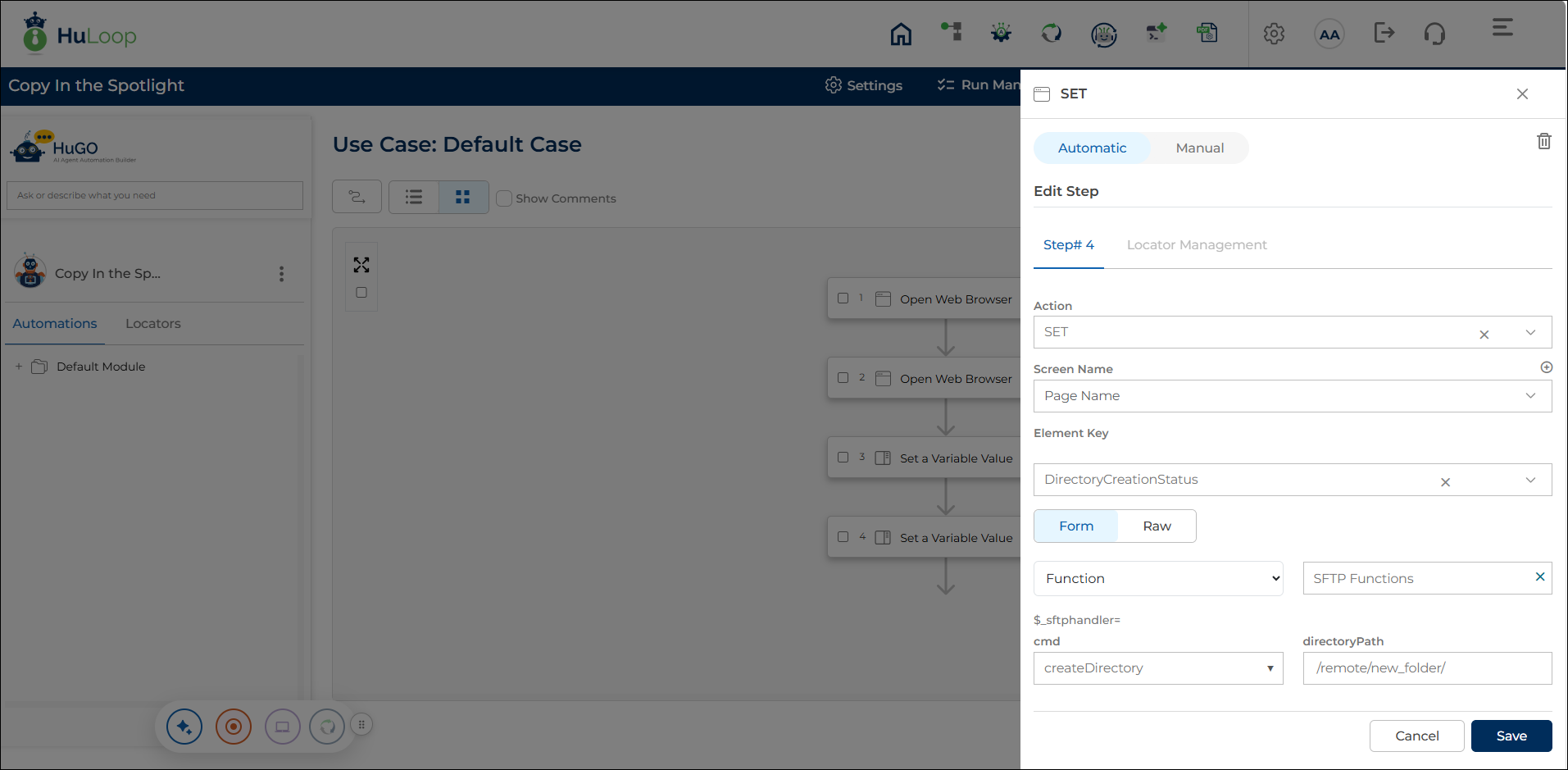

5. Create Directory (createDirectory)

Create a new directory on the SFTP server.

• • Action: Select Set a Variable Value from the Action
    dropdown.
  • Element Key: Enter a variable name to store the operation status (e.g.,
    DirectoryCreationStatus).
  • Parameters:
    • Cmd: Select createDirectory.
    • directoryPath: Specify the path of the new directory to be created on the SFTP server
      (e.g., /remote/new_folder/).

• • Outcome: Returns true if the directory is successfully created; otherwise,
    returns false.

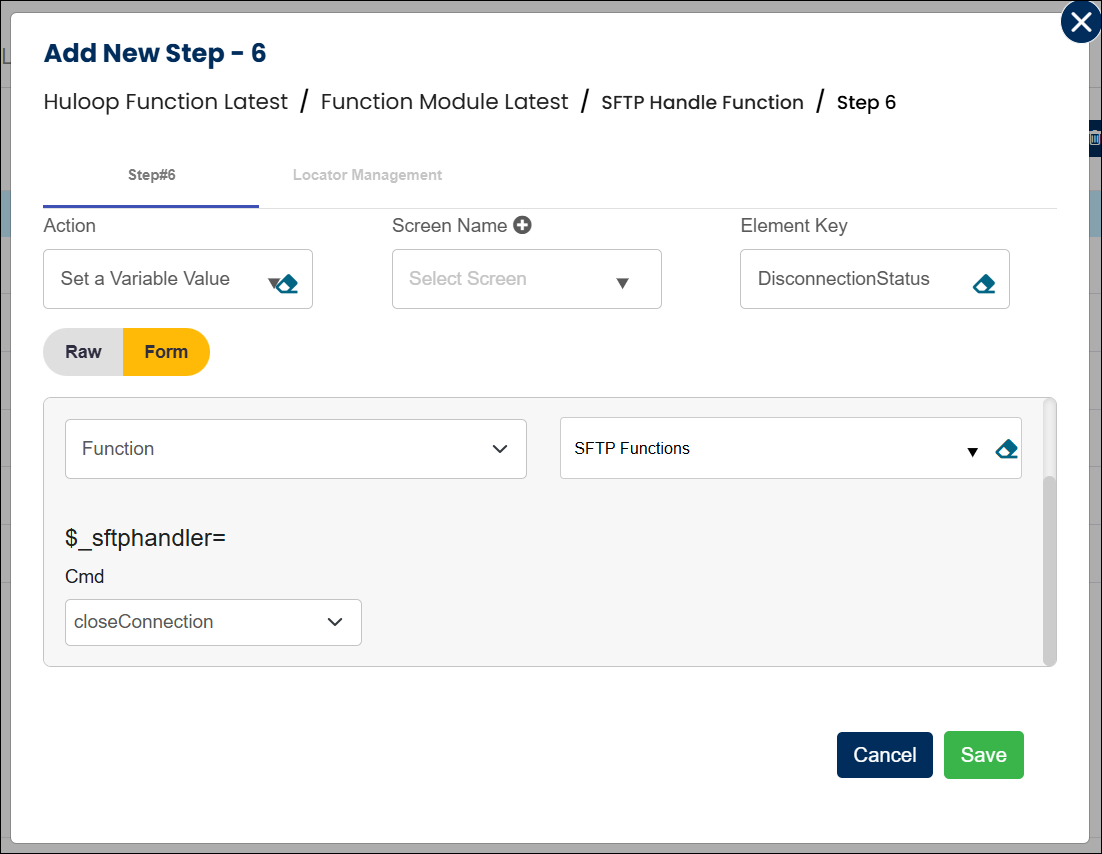

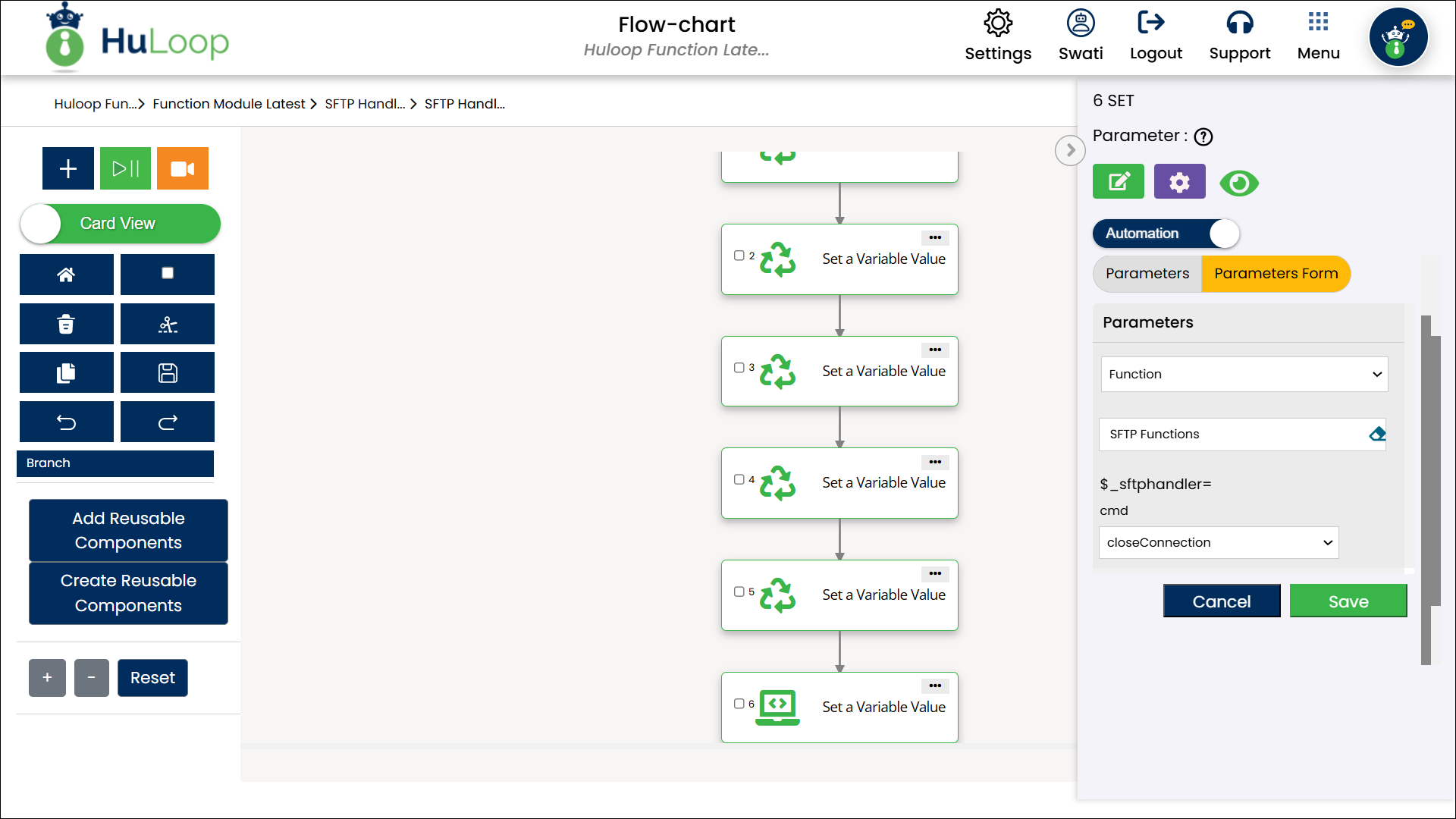

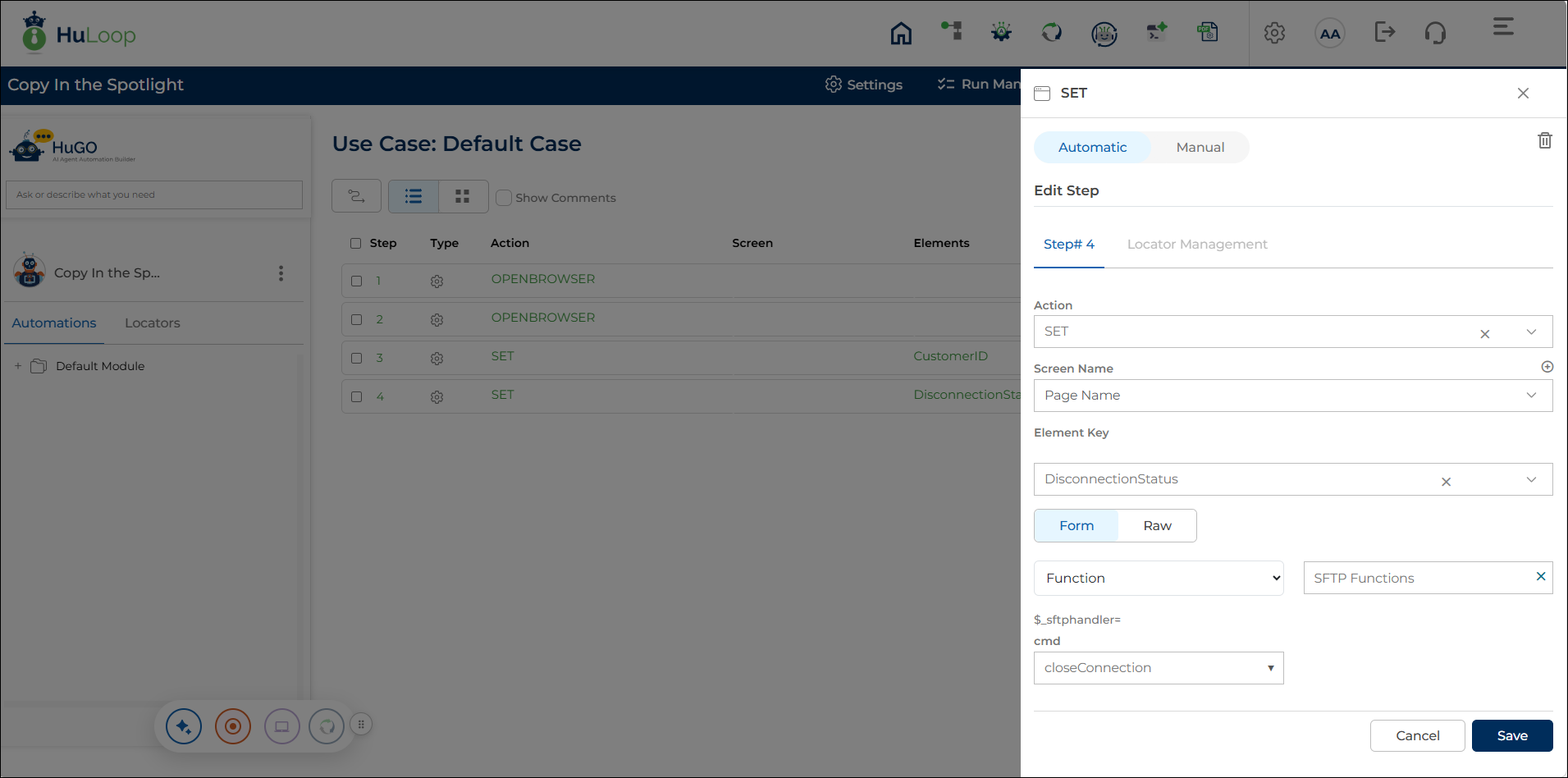

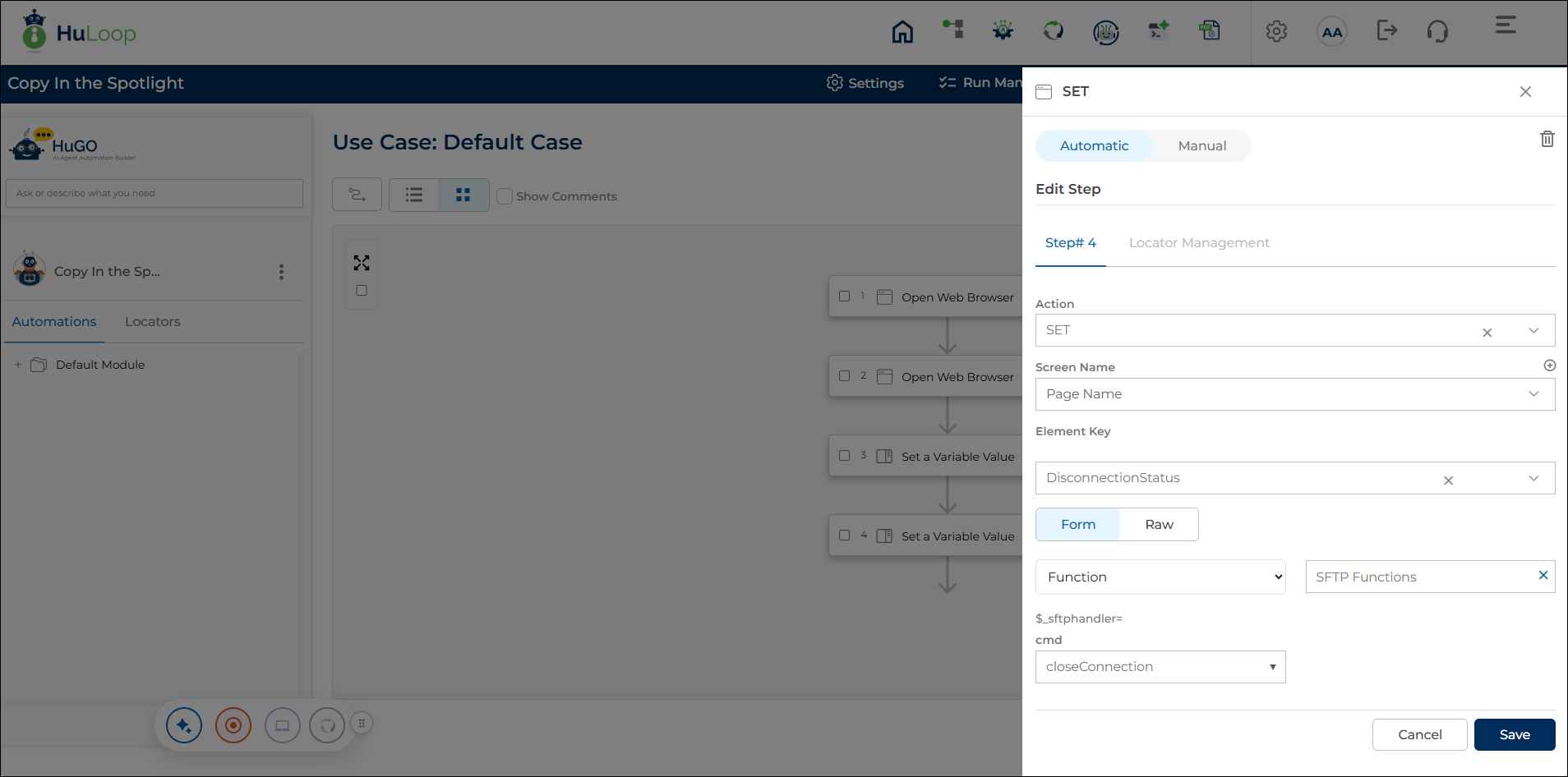

6. Close Connection (closeConnection)

Terminate the connection to the SFTP server.

• • Action: Select Set a Variable Value from the Action
    dropdown.
  • Element Key: Enter a variable name to store the disconnection status (e.g.,
    DisconnectionStatus).
  • Parameters:
    • Cmd: Select closeConnection.

• • Outcome: Returns true if the connection is successfully closed; otherwise,
    returns false.
